Khoom Taw Qhia

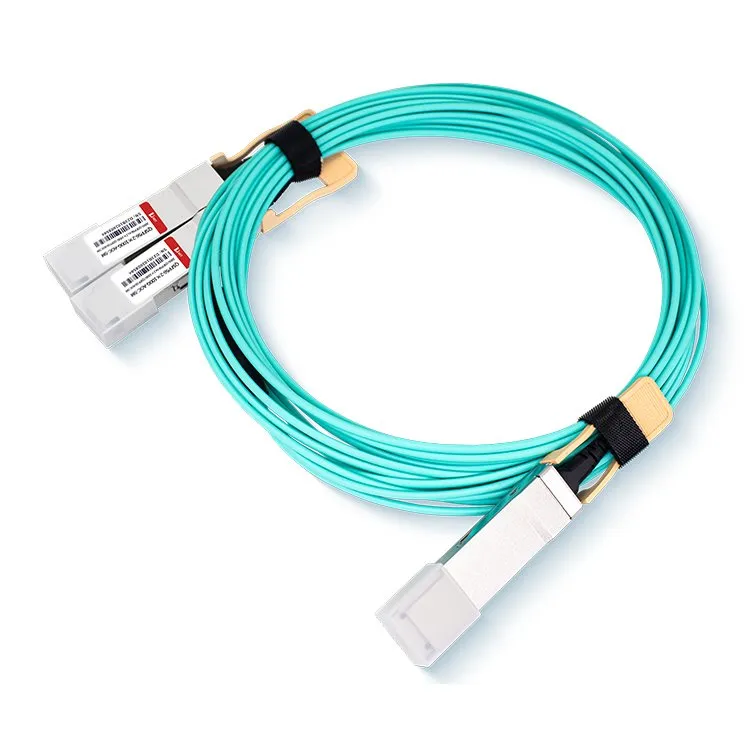

● Active optical cable nrog breakout los ntawm QSFP56 200G rau ob QSFP28 100G
● Txog 53.125Gbps cov ntaub ntawv tus nqi ib channel PAM4 kev hloov pauv
● Integrated 850nm VCSEL array thiab PD array
● DDM muaj nuj nqi siv
● Kub-pluggable
● Tsawg zog dissipation,<4W on 200G end, <3W on 100G end
● Cov khoom lag luam ua haujlwm kub ntau: 0 degree txog 70 degree
● Ua raws li ROHS2.0
Daim ntawv thov
● Cov chaw zov me nyuam thiab Cloud Networks
● 200G InfiniBand HDR tshuab
Cim npe nrov: QSFP56 200G rau 2X100G breakout AOC cable, Tuam Tshoj QSFP56 200G rau 2X100G breakout AOC cable manufacturers, lwm tus neeg, Hoobkas
Qhov siab tshaj qhov ntsuas
|
Khoom |
Modula kev |
raws tu qauv |
Nominal Rate |
Specifications |
|||||
|
Kev sib sau (Gbps) |
Hluav taws xob Txoj kab (Gbaud) |
ppm ua |
Siab ceev Hluav taws xob |
Ua ntej FEC Max BER |
Txuas |
||||
|
200G kawg |
PAM 4 |
IEEE 802.3 cd |
212.5 |
26.5625 |
±100 |
200 GAUI-4 |
1E-6 rau InfiniBand HDR; 2.4E -4 rau 200 GBAS E-SR4 |
0.5 ~ 100m |
|
|
Rau 100 G kawg |
PAM 4 |
IEEE 802.3 cd |
106.25 |
26.5625 |
±100 |
200 GAUI-4 |
|||
|
Parameter |
Cim |
Chav tsev |
Min |
Max |
|
|
Case Kev Ua Haujlwm Kub |
Sab saum toj |
degree |
0 |
70 |
|
|
Cia qhov kub thiab txias |
Ts |
degree |
-40 |
85 |
|
|
txheeb ze humidity |
RH |
% |
0 |
85 |
|
|
Fais fab mov Voltage |
Vcc |
V |
-0.5 |
3.6 |
|
Pom zoo ua hauj lwm tej yam kev mob
|
Parameter |
Cim |
Chav tsev |
Min |
Ntaus |
Max |
|
|
Kev khiav hauj lwm Case Temperature Ntau yam |
Tca |
oC ua |
0 |
/ |
70 |
|
|
Fais fab mov Voltage |
Vcc |
V |
3.135 |
3.3 |
3.465 |
|
Electric Ports Txhais
|
Parameter |
Cim |
Chav tsev |
Min |
Ntaus |
Max |
Sau ntawv |
|
Cov khoom siv hluav taws xob |
VCC |
V |
3.135 |
3.3 |
3.465 |
|
|
Kev siv fais fab |
Pc |
W |
4 |
200g kawg |
||
|
3 |
100G kawg |
|||||
|
Transmitter |
||||||
|
Input Differential Impedance |
RIN |
Ω |
80 |
100 |
120 |
|
|
Single Ended Data Input Swing |
VIN |
mV-p |
90 |
500 |
||
|
Transmit Disable Voltage |
VDIS |
V |
2 |
VCCHOST |
||
|
Transmit Enable Voltage |
VEN |
V |
VEE |
VEE+0.8 |
||
|
Transmit Fault Assert Voltage |
VFA |
V |
2 |
VCCHOST |
||
|
Transmit Fault De-Assert Voltage |
VFDA |
V |
VEE |
VEE+0.8 |
||
|
Tus txais |
||||||
|
Single Ended Data Output Swing |
VOD |
mV-p |
200 |
500 |
||
|
LOS Fault |
VLOSFT |
V |
2 |
VCCHOST |
||
|
LOS Normal |
VLOSNR |
V |
VEE |
VEE+0.8 |
||
|
Differential txiav tsis sib haum |
% |
10 |
||||
|
IIC kev sib txuas lus |
||||||
|
IIC moos zaus |
- |
KHZ |
/ |
100 |
400 |
|
|
moos stretching |
- |
peb |
/ |
/ |
500 |
|
Module Memory Map
Tau tshaj CMIS rev 4.0/ SFF8636
Ordering Information
|
Tshooj Naj Npawb |
Kev piav qhia |
|
Q56-2Q28-200G-1M |
200G QSFP56 SR4 rau 2xQSFP28 SR2 AOC 1M |
|
Q56-2Q28-200G-3M |
200G QSFP56 SR4 rau 2xQSFP28 SR2 AOC 3M |
|
Q56-2Q28-200G-5M |
200G QSFP56 SR4 rau 2xQSFP28 SR2 AOC 5M |
|
Q56-2Q28-200G-7M |
200G QSFP56 SR4 rau 2xQSFP28 SR2 AOC 7M |
|
Q56-2Q28-200G-10M |
200G QSFP56 SR4 rau 2xQSFP28 SR2 AOC 10M |
|
Q56-2Q28-200G-15M |
200G QSFP56 SR4 rau 2xQSFP28 SR2 AOC 15M |
|
Q56-2Q28-200G-20M |
200G QSFP56 SR4 rau 2xQSFP28 SR2 AOC 20M |
|
Q56-2Q28-200G-30M |
200G QSFP56 SR4 rau 2xQSFP28 SR2 AOC 30M |
|
Q56-2Q28-200G-40M |
200G QSFP56 SR4 rau 2xQSFP28 SR2 AOC 40M |
|
Q56-2Q28-200G-50M |
200G QSFP56 SR4 rau 2xQSFP28 SR2 AOC 50M |
|
Q56-2Q28-200G-xxM |
200G QSFP56 SR4 rau 2xQSFP28 SR2 AOC xxM |
FAQ
1. Dab tsi yog active optical cable?
A: Ib qho Active Optical Cable (AOC) yog cov ntaub ntawv xa mus ceev ceev uas sib txuas nrog cov tshuab fiber ntau nrog cov khoom siv hluav taws xob los pab kom hloov cov ntaub ntawv qhia txog kev ncua deb. Nws nquag siv hauv cov ntawv thov xws li cov chaw zov me nyuam, kev ua haujlwm siab, thiab kev sib txuas lus.
2. Dab tsi yog qhov txawv ntawm active thiab passive cables?
A: Nyob rau hauv cov ntsiab lus, thaum ob qho tib si nquag thiab passive cables ua haujlwm rau lub hom phiaj ntawm kev xa cov teeb liab, cov kab hluav taws xob txuas nrog cov khoom siv hluav taws xob ua kom muaj zog los tswj thiab txhim kho cov teeb liab, thaum passive cables tsuas yog siv los ntawm cov khoom siv los ntawm cov khoom siv hluav taws xob rau cov teeb liab kis tau tus mob. .
3. Dab tsi yog qhov ntev tshaj plaws ntawm cov khoom siv kho qhov muag cable?
A: Qhov ntev tshaj plaws ntawm kev siv hluav taws xob kho qhov muag tuaj yeem sib txawv nyob ntawm seb cov khoom siv zoo li cas, cov ntaub ntawv tus nqi, thiab cov cuab yeej siv tshwj xeeb. Txawm li cas los xij, active optical cables muaj peev xwm ncav cuag qhov sib kis tau ntev dua piv rau cov cables passive. Qee qhov xwm txheej, cov kab hluav taws xob kho qhov muag tuaj yeem ua tiav qhov kev sib kis mus txog li ob peb puas meters lossis txawm tias mais, nyob ntawm kev siv tshuab thiab daim ntawv thov. Nws yog ib qho tseem ceeb uas yuav tsum nco ntsoov tias qhov ntev tshaj plaws yuav nyob ntawm seb cov khoom specifications muab los ntawm cov chaw tsim tshuaj paus ntawm lub active optical cable.
