Khoom nta

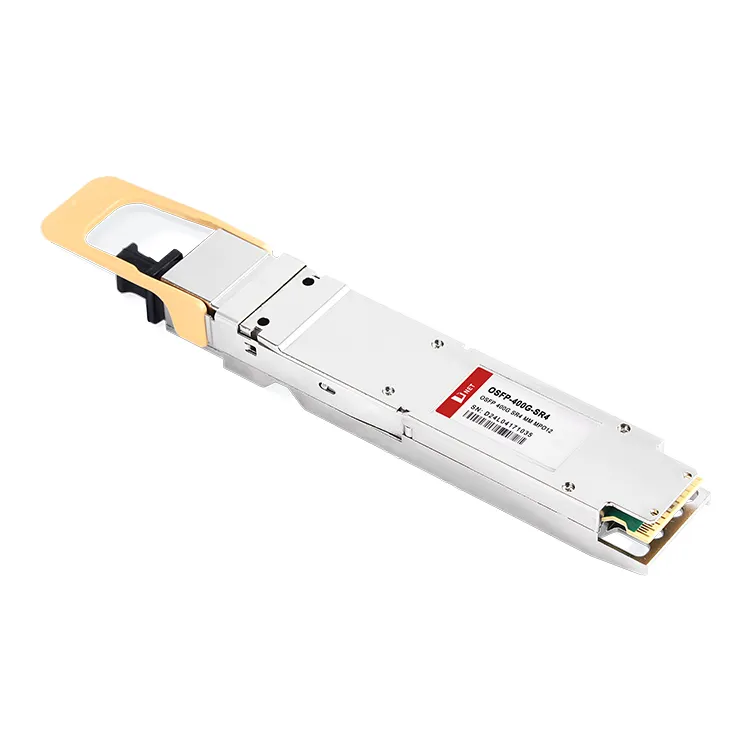

OSFP Serial Optical Interface
●4x100G PAM4 retimed 400GAUI-4 hluav taws xob interface
● Active Optical cable
●4 channel VCSEL arrays thiab 4 channel PIN yees duab ntes arrays
● Qhov siab tshaj qhov txuas ntev ntawm 60m ntawm OM3 lossis 100m ntawm OM4
OSFP MSA Compliant
● Kub Pluggable OSFP daim ntawv foos
● Ua raws li OSFP Module Specification Rev 5.0
● Ua raws li CMIS 5.2
Txhawb nqa raws tu qauv
● Ua raws li IEEE 802.3db
● Ua raws li IEEE 802.3ck
Tsawg Kev siv fais fab
● Tsawg dua 8W hauv qhov kub thiab txias ntawm 0 txog 70 degree
Daim ntawv thov
● 400GBASE-SR4 400G Ethernet
●Data center
Cim npe nrov: 400g osfp sr4 mm mpo12 optical transceiver, Tuam Tshoj 400g osfp sr4 mm mpo12 optical transceiver manufacturers, lwm tus neeg, Hoobkas
Qhov siab tshaj qhov ntsuas
|
Parameter |
Cim |
Min |
Max |
Chav tsev |
|
Cia Kub |
Ts |
-40 |
85 |
.C |
|
Case Operating Temperature |
Sab saum toj |
0 |
70 |
.C |
|
kwv tij Humidity (tsis-condensation) |
RH |
15 |
85 |
% |
|
Cov khoom siv hluav taws xob |
Vcc |
-0.5 |
3.6 |
V |
|
Receiver Damage Threshold, per Txoj kev |
PRdmg ua |
5 |
dBm ib |
Pom zoo ua hauj lwm tej yam kev mob
|
Parameter |
Cim |
Min |
Max |
Chav tsev |
|
Kev khiav hauj lwm Case Temperature |
Sab saum toj |
0 |
70 |
.C |
|
kwv tij Humidity (tsis-condensing) |
RH |
15 |
85 |
% |
|
Fais fab mov Voltage |
Vcc |
3.135 |
3.465 |
V |
|
Tag nrho Kev siv fais fab |
Pc |
- |
8 |
W |
|
Cov khoom siv tam sim no rau kawg |
2.55 |
A |
||
|
Me ntsis Tus nqi |
BR |
425 |
Gbps |
|
|
Fiber Length rau OM 3 MMF |
60 |
m |
||
|
Fiber Length rau OM 4 MMF |
100 |
m |
||
|
I2C moos Ntau zaus |
0 |
400 |
kHz |
Nco tseg:
1. Nyob rau hauv cov xwm txheej ntawm 3.465V kev khiav hauj lwm mov voltage, thiab 70 degree rooj plaub kub
Transmitter Optical Interface
|
Parameter |
Cim |
Min |
Hom |
Max |
Chav tsev |
|
|
Cov ntaub ntawv tus nqi ib txoj kab |
DR |
53.125 |
GBd |
|||
|
Modulation format |
PAM 4 |
|||||
|
Center Wavelength 1 |
λ |
840 |
860 |
868 |
nm |
|
|
RMS spectral dav |
σ |
0.6 |
nm |
|||
|
Nruab nrab Launch zog, txhua txoj kab |
Pavg |
-4.6 |
4 |
dBm ib |
||
|
Optical Fais Fab OMA, txhua txoj kab, max |
POMA |
3.5 |
dBm ib |
|||
|
OMAouter, UA txhua txoj kab min |
max (TECQ, TECQ)<1.8 dB |
max [-2.6 , max(TECQ,TECQ) –4.4] |
dBm ib |
|||
|
1.8 < max (TECQ, TDECQ) < 4.4 dB |
||||||
|
Transmitter thiab dispersion qhov muag kaw (TDECQ), txhua txoj kab |
TDECQ |
4.4 |
dB |
|||
|
Transmitter qhov muag kaw rau PAM4 (TECQ), txhua txoj kab |
TECQ |
4.4 |
dB |
|||
|
Extinction ratio |
ER |
2.5 |
dB |
|||
|
Transmitter zog excursion, txhua txoj kab |
2.3 |
dBm ib |
||||
|
Optical Return Poob Tolerance |
ORLT |
14 |
dB |
|||
|
Optical Fais Fab rau TX DISABLE |
-30 |
dBm ib |
||||
|
Encircled fluxb2 |
Ntau dua lossis sib npaug rau 86% ntawm 19 um Tsawg dua lossis sib npaug li 30% ntawm 4.5 um |
|||||
Nco tseg:
1. Txhais raws li kev ua haujlwm ntawm lub laser siv.
2. Ntsuas rau hauv hom A1a.2 lossis hom A1a.3, lossis A1a.4, 50 um fiber ntau, raws li IEC 61280-1-4
Tus neeg txais kev pabcuam Optical interface
|
Parameter |
Cim |
Min |
Hom |
Max |
Chav tsev |
|
|
Cov ntaub ntawv tus nqi ib txoj kab |
BR |
53.125 |
Gbd |
|||
|
Modulation format |
PAM 4 |
|||||
|
Center Wavelength 1 |
λ |
842 |
885 |
948 |
nm |
|
|
Kev puas tsuaj pib |
5 |
dBm ib |
||||
|
Nruab nrab tau txais lub zog, txhua txoj kab |
-6.4 |
4 |
dBm ib |
|||
|
Txais lub zog, txhua txoj kab (OMAouter) |
dBm ib |
|||||
|
Txais kev cuam tshuam |
Rr |
dB |
||||
|
Receiver rhiab heev, txhua txoj kab 1 |
RS=max (-4.6, TECQ – 6.4) |
dBm ib |
||||
|
Stressed receiver rhiab heev, txhua txoj kab |
-2 |
dBm ib |
||||
|
Rx LOS |
Qhia |
-15 |
dBm ib |
|||
|
De-assert |
-7.5 |
dBm ib |
||||
|
Hysteresis |
0.5 |
5 |
dB |
|||
Nco tseg:
1. Cov neeg txais rhiab heev yog cov ntaub ntawv thiab tau txhais rau lub transmitter nrog tus nqi ntawm TECQ.Measured nrog conformance xeem teeb liab ntawm TP3for BER=2.4E-4 Pre-FEC.
Ordering Information
|
Tshooj Naj Npawb |
Kev piav qhia |
|
OSFP-400G-SR4 |
400G OSFP SR4, MPO12,100m, 850nm, MMF |
FAQ
Q: Cov connectors zoo li cas 400G OSFP SR4 siv?
Q: Dab tsi ntawm cov ntaub ntawv tus nqi tuaj yeem txhawb nqa 400G OSFP SR4?
