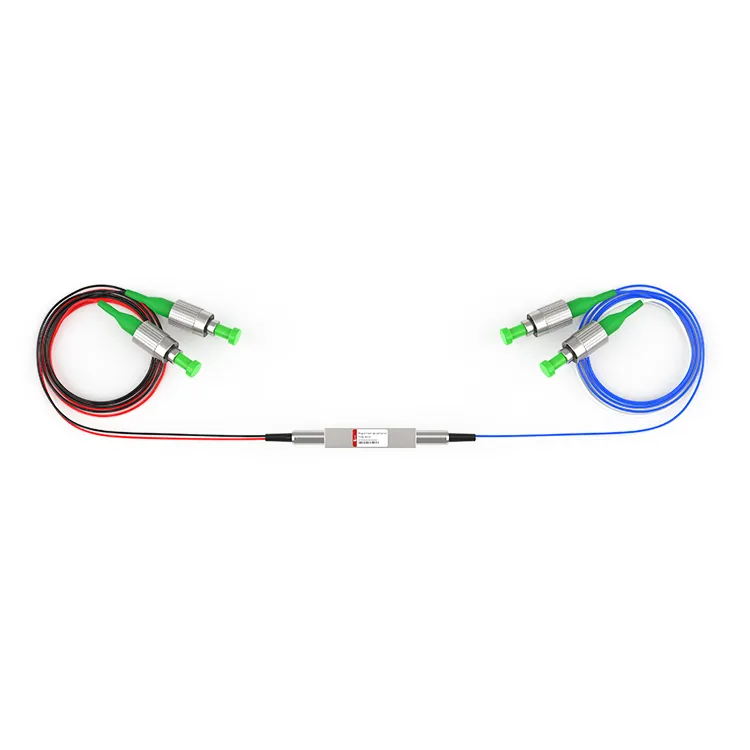

M2x2 Magneto-optical Hloov

M2x2 Magneto-Optical Hloov
M2X2 Magneto-Optical Switch muaj qhov tsis siv neeg kho tshuab thiab tau qhib los ntawm kev tswj hluav taws xob. Qhov hloov pauv muaj qhov poob qis thiab tsawg dua 1.2 dB, uas ua kom cov kis tau zoo thiab ruaj khov ntawm cov teeb liab kho qhov muag thiab txhim kho kev ua haujlwm ntawm kev sib txuas lus kho qhov muag.

Xa kev nug

Hauj lwm lawm

Kev tsis

Khoom Paub meej

Magneto-Optical Switch yog dav siv nyob rau hauv cov khoom siv hauv aerospace, kev soj ntsuam xyuas thiab kev hnov mob, nrog kev ruaj khov latching hom thiab kev ntseeg siab. D-NET yog lub Hoobkas tshwj xeeb hauv kev tshawb fawb thiab kev tsim kho, tsim thiab muag cov khoom siv sib txuas lus fiber ntau thiab cov khoom siv, uas tuaj yeem muab kev pabcuam OEM, thiab cov khoom siv hluav taws xob magneto-optical tuaj yeem txhawb kev tsim khoom.

Cim npe nrov: m2x2 magneto-optical hloov, Tuam Tshoj m2x2 magneto-optical hloov manufacturers, lwm tus neeg, Hoobkas

Kev ua tau zoo Specifications

Parameters	Chav tsev	Specifications
Wavelength Range	nm	1520 ~ 1580
Test Wavelength	nm	1550
Insertion Loss^{1, 2}	dB	Tsawg dua los yog sib npaug rau 1.2
TDL	dB	Tsawg dua lossis sib npaug rau 0.30
PDL	dB	Tsawg dua lossis sib npaug rau 0.20
Rov Los Los	dB	Ntau dua lossis sib npaug li 50
Crosstalk	dB	Bidirectional Loj dua lossis sib npaug rau 20
Crosstalk	dB	Unidirectional Loj dua lossis sib npaug rau 35
Rov ua dua	dB	Tsawg dua lossis sib npaug rau ±0.01
Hloov Sijhawm	peb	Tsawg dua los yog sib npaug li 100
Pulse Duration	peb	Ntau dua lossis sib npaug li 200
Durability	Lub voj voog	Ntau dua lossis sib npaug li 10 Bllions
Hloov hom	NA	Latching
Kev khiav hauj lwm tam sim no	mA	Tsawg dua los yog sib npaug li 200
Maximum Optical Fais Fab	mW	Tsawg dua los yog sib npaug li 500
Ua haujlwm kub	degree	-5 ~ +70
Cia Kub	degree	-40 ~ +85
Dimension	mm	(L)34.0×(W)7.5×(H)7.5 ±0.2

Nco tseg
1. Ntsuas ntawm chav tsev kub thiab SOP.
2. Tsis suav cov connectors, 0.2dB rau ib khub connectors.

Mechanical Dimensions (Unit: hli)

Hluav taws xob tsav

Daim duab ua haujlwm

Ordering Information

FSW-M2x2- □-□-□-□-□-□-□

- □

Hloov hom

Hom Fiber

Qhov hluav taws xob

Lub wavelength

TubeHom

Fiber ntau Ntev

Txuas

B: Ob-directional

U: Unidirectional

SWB: SM, 9/125

X: Lwm tus

2.5:

2.5V

5.0

5.0V

1550: 1550 nm

X: Lwm tus

250: 250 ib

900: 9 00 ygo

X: Lwm tus

05: 0.5m ± 5cm

1 0: 1.0m ± 5cm

X: Lwm tus

OO: Tsis muaj

FC: FC/PC

FA: FC/APC

SC: SC/PC

SA: SC/APC

LC: LC/PC

X: Lwm tus

FAQ

Q: Qhov txawv ntawm M2X2 magneto-optical hloov thiab lwm yam hloov kho qhov muag yog dab tsi?

A: Magneto-optic hloov siv magnetic teb los kho qhov kev hloov ntawm txoj kev kho qhov muag, thiab muaj cov kev khiav hauj lwm sib txawv thiab kev ua tau zoo los ntawm lwm hom kev hloov kho qhov muag, xws li kev hloov kho tshuab lossis electro-optic hloov.

Q: Puas yog M2X2 magneto-optical hloov txhawb kev ua haujlwm ntau hom?

A: 2X2 magneto-optical keyboards feem ntau txhawb kev ua haujlwm ntau hom, haum rau ntau hom kev sib kis ntawm fiber ntau, D-NET magneto-optical keyboards tuaj yeem txhawb kev hloov kho.
