Khoom nta
● Ua raws li QSFP-DD MSA
●4 CWDM kab MUX/DEMUX tsim
●100G Lambda MSA 400G-FR4 Specification raws
● Kev siv hluav taws xob ntau tshaj 10W
● Txog li 2km kis ntawm ib hom fiber ntau (SMF) nrog FEC
● Ib zaug +3.3V fais fab mov
● Duplex LC connector
● RoHS kev tsis txaus siab
Daim ntawv thov
● 400G BASE-FR4 Ethernet
●Data Center Interconnect
●InfiniBand Interconnect
● Kev Lag Luam Kev Lag Luam
Cim npe nrov: 400g qsfp-dd fr4 2km optical transceiver, Tuam Tshoj 400g qsfp-dd fr4 2km optical transceiver manufacturers, lwm tus neeg, Hoobkas
Qhov siab tshaj qhov ntsuas
|
Parameter |
Cim |
Min |
Max |
Chav tsev |
|
Cia Kub Rnpau taws |
Tsrg |
-40 |
+85 |
degree |
|
Cov khoom siv hluav taws xob |
Vcc |
0 |
4 |
V |
|
kwv tij Cov av noo |
RH |
10% rau 90% tsis-condensing |
||
Pom zoo ua hauj lwm tej yam kev mob
|
Parameter |
Cim |
Min |
Max |
Chav tsev |
|
Cia Kub Rnpau taws |
Tsrg |
-40 |
+85 |
degree |
|
Cov khoom siv hluav taws xob |
Vcc |
0 |
4 |
V |
|
kwv tij Cov av noo |
RH |
10% rau 90% tsis-condensing |
||
Transmitter Optical Specifications
|
Transmitter Parameter |
Txoj kev |
Min |
Hom |
Max |
Chav tsev |
||||
|
Nruab nrab pib Lub Hwj Chim rau ib txoj kab |
-3.3 |
3.5 |
dBm ib |
||||||
|
Total Average launch zog |
9.3 |
dBm ib |
|||||||
|
Dutter Optical Modulation Amplitude (OMA sab nraud), txhua txoj kab |
-0.3 |
3.7 |
dBm ib |
||||||
|
Qhov sib txawv ntawm lub zog tso tawm ntawm ib qho twg ob txoj kab (OMA sab nraud) |
4 |
dB |
|||||||
|
Nruab Nrab Launch Fais fab ib txoj kab @TX Tawm Xeev |
-20 |
dBm ib |
|||||||
|
Tua lub zog hauv OMA sab nraud rho tawm TDECQ, txhua txoj kab rau ER Ntau dua lossis sib npaug rau 4.5dB rau ER<4.5dB |
-1.7 -1.6 |
dBm ib |
|||||||
|
Transmitter thiab Dispersion Qhov muag kaw rau PAM4, txhua txoj kab |
3.4 |
dB |
|||||||
|
Extinction Ratio |
3.5 |
dB |
|||||||
|
Relative Intensity Noise (OMA) |
-136 |
dB/Hz |
|||||||
|
Side-Mode Suppression Ration (SMSR) |
30 |
dB |
|||||||
|
Optical Return Poob Tolerance |
17.1 |
dB |
|||||||
|
Transmitter Reflectance |
-26 |
dB |
|||||||
|
Transmitter tso zis zog saib xyuas qhov tseeb |
-3 |
3 |
dB |
||||||
|
TDECQ-10*log10(Ceq), txhua txoj kab |
3.4 |
dB |
|||||||
|
Transmitter hloov lub sijhawm |
17 |
ps |
|||||||
High Speed Electrical Specifications
|
Parameter |
Min |
Hom |
Max |
Chav tsev Sau ntawv |
|
|
Receiver hluav taws xob tso zis yam ntxwv ntawm TP 4 |
|||||
|
Teeb liab tus nqi ib txoj kab |
26.5625 |
GBd |
|||
|
AC hom hom tso zis voltage (RMS) |
17.5 |
mV |
|||
|
Differential peak-rau-peak output voltage |
900 |
mV |
|||
|
Ze-kawg ESMW (Qhov muag symmetry npog qhov dav) |
0.265 |
UI |
|||
|
Nyob ze qhov muag qhov siab, qhov sib txawv |
70 |
mV |
|||
|
Far-end ESMW (Qhov muag symmetry npog qhov dav) |
0.2 |
UI |
|||
|
Far-end Qhov muag qhov siab, qhov sib txawv |
30 |
mV |
|||
|
Far-end pre-cursor ISl piv |
-4.5 |
2.5 |
% |
||
|
9.5-0.37f |
dB |
0 01-8GHz |
|||
|
4.75-7.4log 10 (f/14) |
dB |
8-19 GHz |
|||
|
Feem ntau rau hom sib txawv |
22-20(f/25.78) |
dB |
0 01-12.89GHz |
||
|
15-6log 10 (f/25.78) |
dB |
12. 89-19 GHz |
|||
|
Differential txiav tsis sib haum |
10 |
% |
|||
|
Lub sijhawm hloov pauv (min, 20% txog 80%) |
9.5 |
ps |
|||
|
DC common mode voltage |
-350 |
2850 |
mV |
||
|
Transmitter hluav taws xob input yam ntxwvs hauv TP1 |
|||||
|
Teeb liab tus nqi, ib txoj kab |
26.5625 |
GBd |
|||
|
Differential pk-pk input voltage kam rau ua |
900 |
mV |
|||
|
9.5-0.37f |
dB |
0 01-8GHz |
|||
|
4.75-7.4log 10 (f/14) |
dB |
8-19 GHz |
|||
|
22-20(f/25.78) |
dB |
0 01-12.89GHz |
|||
|
15-6log 10 (f/25.78) |
dB |
12. 89-19 GHz |
|||
|
Differential txiav tsis sib haum |
10 |
% |
|||
|
Module stressed input test |
Ib Ntu 120E.3.4.1 IEEE 802.3 ib |
||||
|
Tib-kawg voltage kam rau ua ntau yam |
-0.4 |
3.3 |
V |
||
|
Common-mode voltage |
-350 |
2850 |
mV |
||
Ordering Information
|
Tshooj Naj Npawb |
Kev piav qhia |
|
QDD-400G-FR4 |

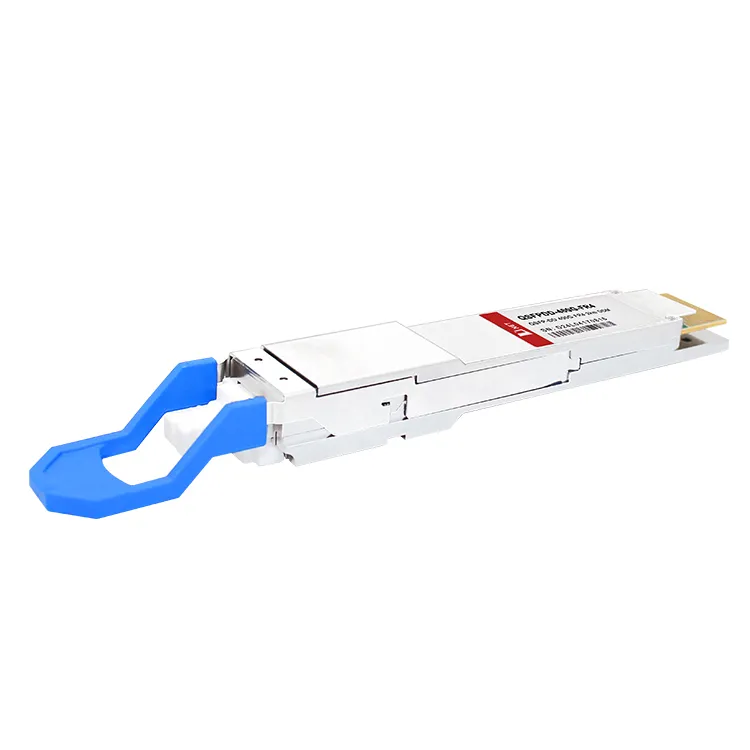

400G QSFP-DD FR4 Optical Transceiver |
FAQ
Q: Puas yog 400G QSFP-DD FR4 txhawb kev kub ntsaws?
Q: Ntev npaum li cas 400G QSFP-DD FR4 xa cov ntaub ntawv?
Q: Yuav ua li cas 400G QSFP-DD FR4 kis tau?
