Nta
● Kub-Pluggable SFP pob
● Duplex LC connector
● 10GHz ITU Grid, C Band
● Fais fab mov: +3.3V
● Hlau plhaub, kom txo tau cov electromagnetic cuam tshuam
● Kev siv hluav taws xob<1.5W
● Kev Kub Kub: 0 ~ 70 degree
Khoom Paub meej

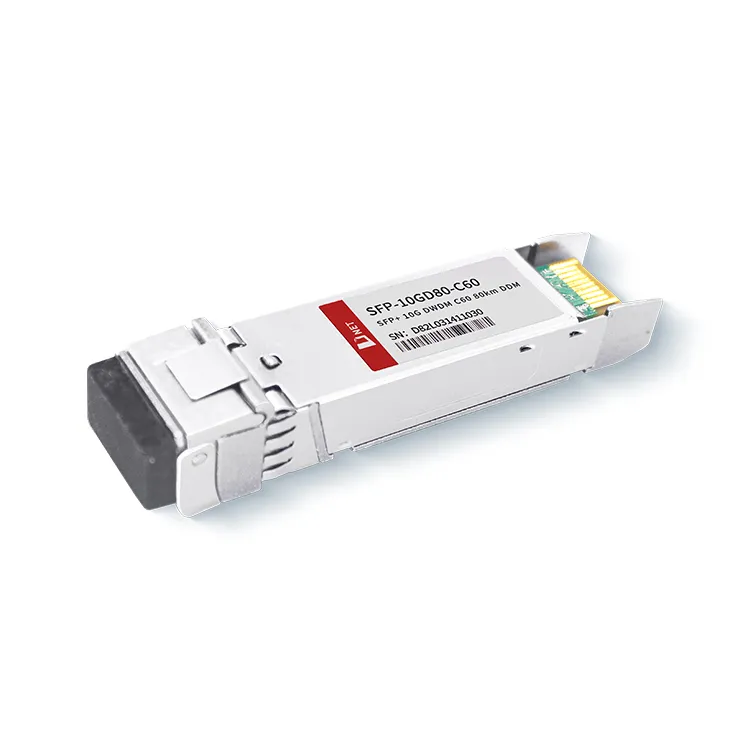

D-net's 10G DWDM 80KM C60 optical transceiver txhawb cov nqi me ntsis ntawm 9.95 txog 11.3Gb / s. Los ntawm kev siv DWDM thev naus laus zis, qhov transceiver no tso cai rau tib lub sijhawm sib kis ntawm ntau lub wavelengths dhau ib qho kev kho qhov muag fiber ntau, yog li txhim kho lub peev xwm network thiab ua kom zoo dua kev siv bandwidth. C60 lub npe qhia tias lub module ua haujlwm nyob rau hauv C-band wavelength range. SFP + DWDM 80KM C60 transceivers feem ntau siv hauv 10GBASE-ZR/ZW Ethernet, Sonet OC-192/SDH, 10G Fiber Channel, thiab DWDM Networks.
Cim npe nrov: SFP+10G DWDM C60 80km, Tuam Tshoj SFP+10G DWDM C60 80km manufacturers, lwm tus neeg, Hoobkas
Qhov siab tshaj qhov ntsuas
|
Parameter |
Cim |
Min. |
Hom |
Max. |
Chav tsev |
|
Cia Kub |
TS |
-40 |
+85 |
degree |
|
|
Case Kev Ua Haujlwm Kub |
TA |
0 |
70 |
degree |
|
|
Maximum Supply Voltage |
Vcc |
-0.5 |
4 |
V |
|
|
txheeb ze humidity |
RH |
0 |
85 |
% |
Cov yam ntxwv hluav taws xob
(TOP=0 rau 70degree , VCC=3.135 txog 3.465V)
|
Parameter |
Cim |
Min. |
Hom |
Max. |
Chav tsev |
Nco tseg |
|
Cov khoom siv hluav taws xob |
Vcc |
3.135 |
3.465 |
V |
||
|
Cov khoom siv tam sim no |
Icc |
450 |
mA |
|||
|
Kev siv fais fab |
P |
1.5 |
W |
|||
|
Tshooj xov tooj cua |
||||||
|
Input qhov sib txawv impedance |
Rhauv |
100 |
Ω |
1 |
||
|
Tx Input Single Ended DC Voltage Tolerance (Ref VeeT) |
V |
-0.3 |
4 |
V |
||
|
Differential input voltage viav vias |
Vin, p |
180 |
700 |
mV |
2 |
|
|
Transmit Disable Voltage |
VD |
2 |
Vcc |
V |
3 |
|
|
Transmit Enable Voltage |
VEN |
Vee |
Yees +0.8 |
V |
||
|
Tshooj txais |
||||||
|
Ib qho kawg tso zis Voltage kam rau ua |
V |
-0.3 |
4 |
V |
||
|
Rx tso zis qhov sib txawv Voltage |
Vo |
300 |
850 |
mV |
||
|
Rx tso zis nce thiab caij nplooj zeeg |
Tr/Tf |
30 |
ps |
4 |
||
|
LOS Fault |
VLOS txhaum |
2 |
VccHOST |
V |
5 |
|
|
LOS Normal |
VLOS norm |
Vee |
Yees +0.8 |
V |
5 |
|
Optical Parameters
(TOP=0 rau 70degree , VCC=3.135 txog 3.465V)
|
Parameter |
Cim |
Min. |
Hom |
Max. |
Chav tsev |
Nco tseg |
|
Tshooj xov tooj cua |
||||||
|
Optical Wavelength-End Of Life |
λ |
X-100 |
X |
X+100 |
pm |
|
|
Optical Wavelength-Pib Pib Lub Neej |
λ |
X-25 |
X |
X+25 |
pm |
|
|
Nruab Nrab Optical Fais Fab |
Pavg |
0 |
+5 |
dBm ib |
1 |
|
|
Laser Off Lub Zog |
Poff |
-30 |
dBm ib |
|||
|
Extinction Ratio |
ER |
8.2 |
dB |
|||
|
Transmitter Dispersion txim |
TDP |
3.0 |
dB |
2 |
||
|
Kwv tij siv suab nrov |
Rin |
-128 |
dB/Hz |
3 |
||
|
Optical Return Poob Tolerance |
20 |
dB |
||||
|
Tshooj txais |
||||||
|
Center Wavelength |
λr |
1480 |
1565 |
nm |
||
|
Los Assert |
LOSA |
-40 |
- |
dBm ib |
||
|
Los Dessert |
LOSD |
-24 |
dBm ib |
|||
|
Los Hysteresis |
LOSH |
0.5 |
dB |
|||
|
Tshaj dhau |
Sat |
-7 |
dBm ib |
5 |
||
|
Txais Reflectance |
Rrx |
-12 |
dB |
|||
Ordering Information
|
Tshooj Naj Npawb |
Kev piav qhia |
|
SFP-10GD80-C60 |
10G DWDM 80KM C60 Transceiver Kub Pluggable, Duplex LC, +3.3V, 100GHz, DWDM EML&APD, Ib hom |
FAQ
1. DWDM SFP yog dab tsi?
A: DWDM SFP Optical module belongs rau hom WDM optical module. SFP + DWDM 80KM C60 transceiver txais DWDM thev naus laus zis, uas siv cov wavelengths sib txawv los rov siv ntau lub teeb liab kho qhov muag rau hauv fiber ntau los xa cov ntaub ntawv.
2. Dab tsi SFP xav tau rau kev sib txuas ntev?
A: Txheem Ib hom SFPs tuaj yeem xa mus txog 10km, thaum Extended Single mode SFPs, mus txog 80km. Rau qhov luv luv, thiab kev xaiv pheej yig dua, ntau hom SFPs yog ib qho kev daws teeb meem zoo. Ib hom ntau hom SFP tuaj yeem xa mus txog 500m, thaum Extended multi hom SFP, mus txog 2km.
