Daim ntawv thov
● 10GBASE-ZR/ZW Ethernet
● SONET OC-192/ SDH STM-64
● 10G Fiber channel
● OTN OTU2e
Khoom Paub meej

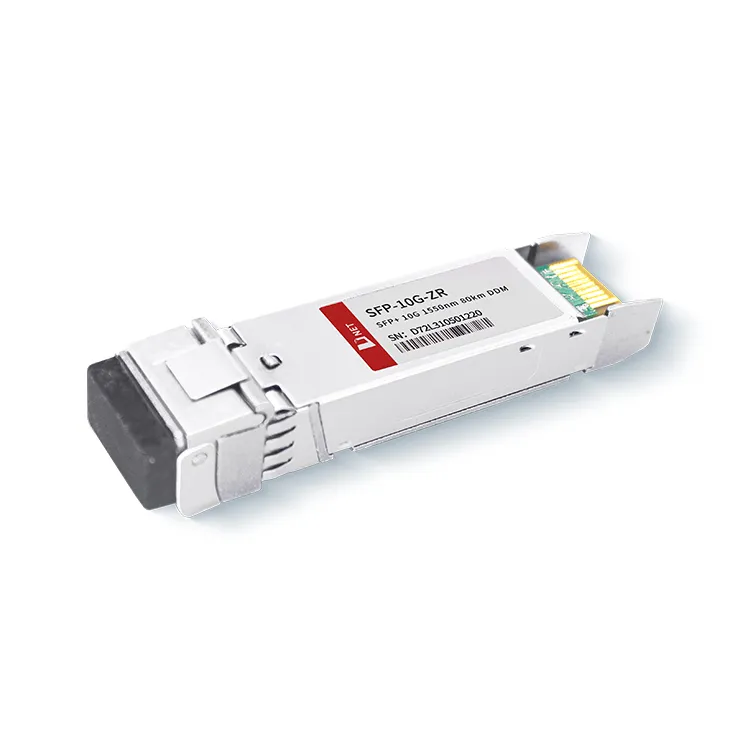

10G SFP + ZR 80KM transceiver module los ntawm D-NET converts 10Gb / s serial hluav taws xob cov ntaub ntawv ntws mus rau hauv 10Gb / s optical tso zis teeb liab, thiab vice versa, converting 10Gb / s optical input teeb liab rov qab mus rau 10Gb / s serial hluav taws xob cov ntaub ntawv ntws. Lub module ua raws li qhov ua tau raws li SFP daim ntawv ua tau zoo, muab qhov kub-pluggability, ua kom yooj yim hloov kho rau cov chaw nres nkoj kho qhov muag, thiab ua kom tsis muaj hluav taws xob cuam tshuam (EMI) emissions.
Cim npe nrov: SFP+10G ZR 1550nm 80km transceiver module, Tuam Tshoj SFP+10G ZR 1550nm 80km transceiver module manufacturers, lwm tus neeg, Hoobkas
Qhov siab tshaj qhov ntsuas
|
Parameter |
Cim |
Min. |
Hom |
Max. |
Chav tsev |
|
|
Cia Kub |
TS |
-40 |
+85 |
degree |
||
|
Case Kev Ua Haujlwm Kub |
Kev lag luam |
TA |
0 |
70 |
degree |
|
|
Kev lag luam |
TA |
|||||
|
Maximum Supply Voltage |
Vcc |
-0.5 |
4 |
V |
||
|
txheeb ze humidity |
RH |
0 |
85 |
% |
||
Cov yam ntxwv hluav taws xob
(TOP=0 txog 70 degree, VCC=3.135 txog 3.465 Volts)
|
Parameter |
Cim |
Min. |
Hom |
Max. |
Chav tsev |
Nco tseg |
|
Cov khoom siv hluav taws xob |
Vcc |
3.135 |
3.465 |
V |
||
|
Cov khoom siv tam sim no |
Icc |
500 |
mA |
|||
|
Kev siv fais fab |
P |
1.8 |
W |
|||
|
Tshooj xov tooj cua |
||||||
|
Input sib txawv impedance |
Rhauv |
100 |
Ω |
1 |
||
|
Tx Input Single Ended DC Voltage Tolerance (Ref VeeT) |
V |
-0.3 |
4 |
V |
||
|
Differential input voltage viav vias |
Vin, p |
180 |
700 |
mV |
2 |
|
|
Transmit Disable Voltage |
VD |
2 |
Vcc |
V |
3 |
|
|
Transmit Enable Voltage |
VEN |
Vee |
Yees +0.8 |
V |
||
|
Tshooj txais |
||||||
|
Ib qho kawg tso zis Voltage kam rau ua |
V |
-0.3 |
4 |
V |
||
|
Rx tso zis qhov sib txawv Voltage |
Vo |
300 |
850 |
mV |
||
|
Rx tso zis nce thiab caij nplooj zeeg |
Tr/Tf |
30 |
ps |
4 |
||
|
LOS Fault |
VLOS txhaum |
2 |
VccHOST |
V |
5 |
|
|
LOS Normal |
VLOS norm |
Vee |
Yees +0.8 |
V |
5 |
|
Optical Parameters
(TOP=0 txog 70 degree, VCC=3.135 txog 3.465 Volts)
|
Parameter |
Cim |
Min. |
Hom |
Max. |
Chav tsev |
Nco tseg |
|
Tshooj xov tooj cua |
||||||
|
Center Wavelength |
λt |
1530 |
1550 |
1565 |
nm |
|
|
spectral dav |
△λ |
0.3 |
nm |
|||
|
Nruab Nrab Optical Fais Fab |
Pavg |
0 |
+5 |
dBm ib |
1 |
|
|
Optical zog OMA |
Poma |
-2.1 |
dBm ib |
|||
|
Laser Off Lub Zog |
Poff |
-30 |
dBm ib |
|||
|
Extinction Ratio |
ER |
8.2 |
dB |
|||
|
Transmitter Dispersion txim |
TDP |
3.0 |
dB |
2 |
||
|
Kwv tij siv suab nrov |
Rin |
-128 |
dB/Hz |
3 |
||
|
Optical Return Poob Tolerance |
21 |
dB |
||||
|
Tshooj txais |
||||||
|
Center Wavelength |
λr |
1260 |
1600 |
nm |
||
|
Tus txais rhiab heev |
Sen |
-23 |
dBm ib |
4 |
||
|
Stressed Sensitivity (OMA) |
SenST |
-21 |
dBm ib |
4 |
||
|
Los Assert |
LOSA |
-34 |
- |
dBm ib |
||
|
Los Dessert |
LOSD |
-24 |
dBm ib |
|||
|
Los Hysteresis |
LOSH |
0.5 |
dB |
|||
|
Tshaj dhau |
Sat |
-7 |
dBm ib |
5 |
||
|
Txais Reflectance |
Rrx |
-26 |
dB |
|||
Nco tseg
1. 12dB kev xav.
2. Cov lej nruab nrab ntawm lub zog yog cov ntaub ntawv tsuas yog, raws li IEEE802.3ae.
3. TWDP daim duab xav kom lub rooj tsav xwm tswj hwm SFF-8431ua raws. TWDP yog suav nrog Matlab code muab nyob rau hauv clause 68.6.6.2 ntawm IEEE802.3ae.
Ordering Information
|
Tshooj Naj Npawb |
Kev piav qhia |
|
SFP-10G-ZR |
10G SFP + ZR 80KM transceiver module, Kub Pluggable, Duplex LC, +3.3V, 1550nm EML&APD, Ib hom |
FAQ
1. Qhov ntau ntawm 10G ZR yog dab tsi?
A: Rau 10G 80KM 1550nm optical output zog thiab wavelength (1550nm) raug txheeb xyuas ntawm optical spectrum analyzers. Lub 80km siab tshaj qhov tseeb (tsis simulated) SMF, singlemode fiber cable.
2. Qhov txawv ntawm SFP ER thiab ZR yog dab tsi?
A: SFP-10G-ER ua tiav qhov kis tau tus mob mus txog 40 km los ntawm ib hom kev kho qhov muag fiber ntau. SFP-10G-ZR muaj 1550nm wavelength, txhawb kev sib kis mus txog 80 km ntawm tus qauv ib hom fiber ntau, thiab tau siv dav hauv 10GBASE-ZR / ZW Ethernet thiab 10G Fiber channel.
3. Dab tsi yog qhov optical transmit power range rau 10G ZR SFP?
A: Qhov siab tshaj plaws optical xa hluav taws xob ntawm D-NET's 10G 80KM 1550nm Module yog 4.0 dBm thiab qhov tsawg kawg nkaus yog 0 dBm.
