Nta
● Tsawg qhov nkag tsis tau
● Exceptional teeb liab stability
● High-speed switching peev xwm
● Kev tiv thaiv dav wavelength
● Kev siv hluav taws xob zoo
● Lub zog thiab compact tsim
Daim ntawv thov
● Kev Ntsuam Xyuas Network thiab Saib Xyuas
● Fiber Optic Network Redundancy
● Optical Signal Routing

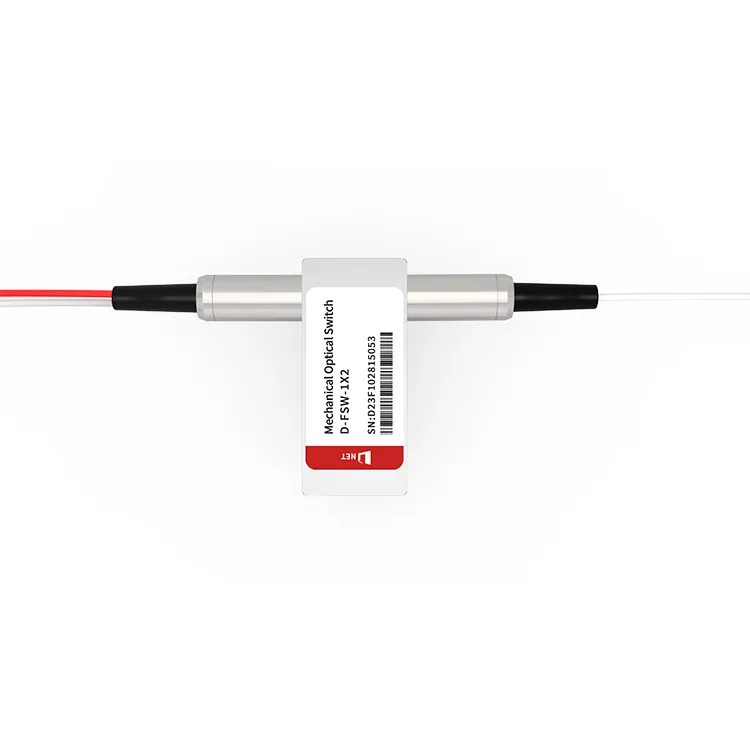

Cim npe nrov: 1X2 OPTO Mechanical Optical Hloov, Tuam Tshoj 1X2 OPTO Mechanical Optical Hloov manufacturers, lwm tus neeg, Hoobkas
Specifications
|
Ua haujlwm wavelength |
1260-1620nm (SM) 850nm (MM) |
Insertion Loss |
Tsawg dua lossis sib npaug rau 1.0dB |
|
Wavelength Dependent Poob |
Tsawg dua lossis sib npaug rau 0.25dB |
Polarization Dependent Poob |
Tsawg dua los yog sib npaug rau 0.05dB |
|
Temperature Dependent Loss |
Tsawg dua lossis sib npaug rau 0.20dB |
Rov Los Los |
SM Ntau dua lossis sib npaug rau 50dB MM Ntau dua lossis sib npaug rau 30dB |
|
Hla Tham |
SM Ntau dua lossis sib npaug rau 55dB MM Ntau dua lossis sib npaug rau 35dB |
Hloov Sijhawm |
Tsawg dua lossis sib npaug li 8ms |
|
Rov ua dua |
Tsawg dua lossis sib npaug rau ±0.02dB |
Durability |
Ntau dua lossis sib npaug li 107 npaug |
|
Kev khiav hauj lwm voltage |
3 o5v |
Hloov hom |
Tsis-Latching/Latching |
|
Ua haujlwm kub |
-20 ~ + 70 degree |
Cia Kub |
-40 ~ + 85 degree |
|
Optical zog |
Tsawg dua lossis sib npaug li 500mW |
Dimension |
27. 0L × 12 |
Pin Configurations
|
Hom |
Optical Route |
Hluav taws xob tsav |
Lub Xeev Sensor |
||||||
|
1×2 |
Pin 1 |
Pin 5 |
Pin 6 |
Pin 10 |
Pin 2-3 |
Pin 3-4 |
Pin 7-8 |
Pin 8-9 |
|
|
Latching |
P1-P2 |
-- |
-- |
GND |
V＋ |
Kaw |
Qhib |
Qhib |
Kaw |
|
P1-P3 |
V＋ |
GND |
-- |
-- |
Qhib |
Kaw |
Kaw |
Qhib |
|
|
Tsis-latching |
P1-P2 |
-- |
-- |
-- |
-- |
Kaw |
Qhib |
Qhib |
Kaw |
|
P1-P3 |
V＋ |
-- |
-- |
GND |
Qhib |
Kaw |
Kaw |
Qhib |
|
Mechanical Dimensions (Unit: hli)
Optical Route
Ordering Information
|
FSW |
-1X2- |
-Wavelength- |
- Hloov hom- |
-Qhov voltage- |
-Fiber Hom- |
-Package- |
-Fiberlength - |
-Connector- |
|
1060＝1 C＋L＝2 1310＝3 1410＝4 1550＝5 650＝6 780＝7 1260-1610=A 1310/1550＝9 850=8 Tshwj xeeb 0 |
Latching 1 Tsis-Latching 2 MINI Latching 3 MINI Tsis-latching 4 Tshwj xeeb 0 |
3V=3 5V=5 Tshwj xeeb 0 |
SM 28=1 50/125=5 62.5/125=6 Tshwj xeeb 0 |
Fiber ntau =1 900um tube =3 Tshwj xeeb 0 |
0.25m=1 0.5m=2 1.0m=3 Tshwj xeeb 0 |
Tsis muaj =1 FC/PC =2 FC/APC=3 SC/PC =4 SC/APC=5 ST/PC =6 LC/PC =7 Duplex LC =8 Tshwj xeeb 0 |
FAQ
1. Dab tsi yog opto-mechanical hloov
A: Ib qho kev hloov kho opto-mechanical, hloov pauv hu ua electro-optic hloov lossis hloov kho qhov muag, ua haujlwm rau lub hom phiaj ntawm kev coj lossis hloov kho qhov muag teeb liab ntawm ntau txoj hauv kev lossis txoj hauv kev xaiv. Nws ua tiav qhov no los ntawm kev hloov lub cev ntawm qhov chaw ntawm cov khoom siv kho qhov muag, zoo li daim iav lossis prism, yog li tswj cov kev taw qhia ntawm lub teeb ntws.
2. Dab tsi yog qhov zoo dua qhov kho qhov muag lossis kev hloov kho tshuab?
A: Kev xaiv ntawm optical thiab mechanical switches nyob ntawm ntau yam, nrog rau cov kev thov tshwj xeeb, kev txwv nyiaj txiag, thiab cov yam ntxwv xav tau. Hauv cov ntawv thov uas tsis tshua muaj qhov poob qis, kev ntseeg siab, thiab qhov dav bandwidth yog qhov tseem ceeb, qhov hloov kho qhov muag yuav yog qhov kev xaiv zoo tshaj. Ntawm qhov tod tes, yog tias tus nqi ua tau zoo thiab kev yooj yim dua yog qhov tseem ceeb, cov khoom siv hluav taws xob yuav yog qhov kev xaiv zoo dua.
3. Dab tsi yog qhov txawv ntawm qhov hloov kho qhov muag
A: Optical keyboards, tseem hu ua opto-mechanical keyboards, yog cov cuab yeej tsim los xa cov teeb liab thiab tswj cov ntaub ntawv ntws los ntawm kev siv lub teeb. Nyob rau hauv sib piv rau cov tsoos mechanical keyboards uas tso siab rau lub cev tiv tauj thiab cov khoom siv hlau, cov keyboards no siv lub teeb teeb pom kev zoo rau kev tshawb pom thiab hloov pauv ntawm cov teeb liab.
