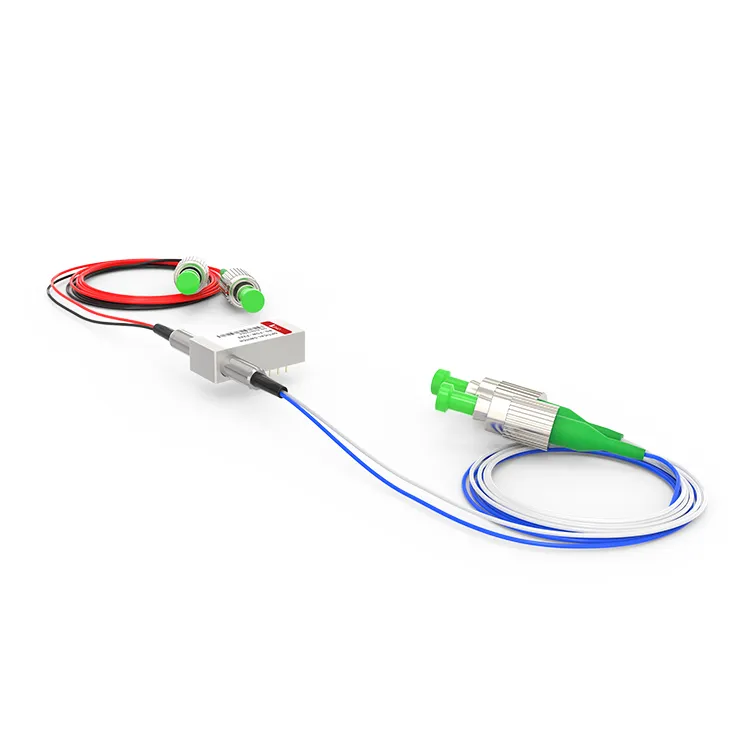

F2X2 OPTO Mechanical Optical Hloov

F2X2 OPTO Mechanical Optical Hloov
F2X2 Mechanical Optical Switch yog tag nrho cov khoom siv kho qhov muag kho qhov muag nrog ob qhov chaw nkag thiab ob qhov chaw tso tawm. Nws txais cov qauv siv tshuab kom paub txog cov teeb liab kho qhov muag routing switching, thiab hloov cov teeb liab kho qhov muag los ntawm ib qho chaw nkag mus rau lwm qhov chaw tso zis los ntawm kev ua haujlwm txhua yam.

Xa kev nug

Hauj lwm lawm

Kev tsis

Khoom Paub meej

F2X2 opto-mechanical hloov ua haujlwm los ntawm kev coj los yog thaiv cov tswv yim kho qhov muag kom txuas cov optical channel rau cov zis fiber ntau. Lub latch version tswj txoj kev xaiv kho qhov muag txawm tias tom qab lub teeb liab tsav tau raug tshem tawm, qhov uas tsis yog-latched version defaults rau ob qho tib si ntawm lossis tawm txoj haujlwm thaum lub zog poob. F2X2 Mechanical Optical Switch boasts ib qho kev poob qis dua 1.

Cim npe nrov: f2x2 opto mechanical optical hloov, Tuam Tshoj f2x2 opto mechanical optical hloov manufacturers, lwm tus neeg, Hoobkas

Khoom Specifications

Ua haujlwm wavelength	1240-1680nm (SM)	Insertion Loss	Tsawg dua lossis sib npaug rau 1.0dB
Wavelength Dependent Poob	Tsawg dua los yog sib npaug rau 0.25dB	Polarization Dependent Poob	Tsawg dua los yog sib npaug rau 0.05dB
Temperature Dependent Loss	Tsawg dua lossis sib npaug rau 0.20dB	Rov Los Los	SM Ntau dua lossis sib npaug rau 55dB
Hla Tham	SM Ntau dua lossis sib npaug rau 70dB	Hloov Sijhawm	Tsawg dua los yog sib npaug li 8ms
Rov ua dua	Tsawg dua lossis sib npaug rau ±0.02dB	Durability	Ntau tshaj los yog sib npaug rau 10⁷sij hawm
Kev khiav hauj lwm voltage	3 o5v	Hloov hom	Tsis-Latching/Latching
Ua haujlwm kub	-20 ~ + 70 degree	Cia Kub	-40 ~ 85 ° C
Optical zog	Tsawg dua lossis sib npaug li 500mW	Dimension	27. 0L × 12.5W × 8.4H mm

Pin Configurations

Hom	Optical Route	Hluav taws xob tsav				Lub Xeev Sensor
F2×2	Optical Route	Pin 1	Pin 5	Pin 6	Pin 10	Pin 2-3	Pin 3-4	Pin 7-8	Pin 8-9
Latching	P1-P4,P2-P3	--	--	GND	V＋	Kaw	Qhib	Qhib	Kaw
Latching	P1-P3,P2-P4	V＋	GND	--	--	Qhib	Kaw	Kaw	Qhib
Tsis-latching	P1-P4,P2-P3	--	--	--	--	Kaw	Qhib	Qhib	Kaw
Tsis-latching	P1-P3,P2-P4	V＋	--	--	GND	Qhib	Kaw	Kaw	Qhib

Mechanical Dimensions (Unit: hli)

Optical Route

Ordering Information

RD-FWV

-F2X2-

-Wavelength-

- Hloov hom-

-Qhov voltage-

- Fiber ntau-

-Package-

-Fiber ntev-

-Connector-

1060＝1

C＋L＝2

1310＝3

1410＝4

1550＝5

650＝6

780＝7

1260-1610=A

1310/1550＝9

850=8

Tshwj xeeb 0

Latching 1

Tsis-Latching 2

MINI Latching 3

MINI Tsis-latching 4

Tshwj xeeb 0

3V=3

5V=5

Tshwj xeeb 0

SM 28=1

50/125=5

62.5/125=6

Tshwj xeeb 0

Fiber ntau =1

900um tube =3

Tshwj xeeb 0

0.25m=1

0.5m=2

1.0m=3

Tshwj xeeb 0

Tsis muaj =1

FC/PC =2

FC/APC=3

SC/PC =4

SC/APC=5

ST/PC =6

LC/PC =7

Duplex LC =8

Tshwj xeeb 0

FAQ

Q: Puas yog F2X2 Mechanical Optical Switch txhawb kev tswj chaw taws teeb?

A: Yog lawm, ntau F2x2 opto-mechanical keyboards muaj peev xwm tswj tau cov chaw taws teeb, tso cai rau cov chaw taws teeb hloov pauv thiab saib xyuas cov xwm txheej los ntawm kev tswj lossis kev sib txuas lus.

Q: Yuav ua li cas ceev F2x2 opto mechanical hloov?

A: F2X2 Mechanical Optical Switch muaj lub sijhawm teb sai thiab muaj peev xwm hloov kho qhov muag hauv nanoseconds.
