Khoom nta

● Txhawb me ntsis tus nqi mus txog 25.78Gbps

●Features kub-pluggable SFP + hneev taw

● Nruab nrog 1310nm DFB laser thiab PIN photodiode, ua kom tau mus txog 10km kis dhau SMF

● Ua raws li SFP + MSA thiab SFF-8472 cov lus qhia tshwj xeeb, muaj cov khoom siv LC duplex

● RoHS raws

● Ua haujlwm nrog ib zaug +3.3V fais fab mov

● suav nrog Real-Time Digital Diagnostic Monitoring

●Operating case kub range: Standard 0 degree to +70 degree

Daim ntawv thov

● 25GBASE-LR

Khoom Paub meej

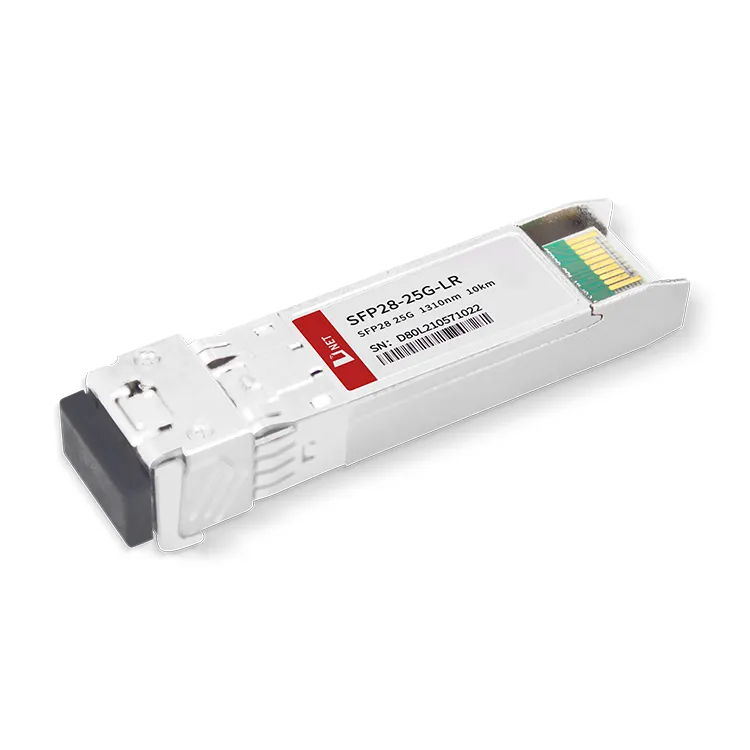

SFP28 transceivers yog cov kev ua tau zoo, cov nqi tsim nyog muaj peev xwm txhawb nqa cov ntaub ntawv tus nqi ntawm 25.78Gbps thiab pab txhawb kev sib kis ntawm 10km dhau Ib Hom Fiber (SMF).

Cov transceivers no suav nrog peb yam tseem ceeb: DFB laser transmitter, PIN photodiode uas tau koom ua ke nrog trans-impedance preamplifier (TIA), thiab MCU tswj chav. Tag nrho cov modules ua raws li Class I laser kev nyab xeeb cov qauv.

Cim npe nrov: SFP28 25G LR 10KM transceiver module, Tuam Tshoj SFP28 25G LR 10KM transceiver module manufacturers, lwm tus neeg, Hoobkas

Qhov siab tshaj qhov ntsuas

Parameter	Cim	Min	Max	Chav tsev
Cov khoom siv hluav taws xob	Vcc	-0.5	4	V
Cia Kub	Ts	-40	+85	degree
Kev khiav dej num	-	5	85	%

Pom zoo ua hauj lwm tej yam kev mob

Parameter	Cim	Min	Hom	Max	Chav tsev
Kev khiav hauj lwm Case Temperature	Tc	0		+70	degree
Fais fab mov Voltage	Vcc	3.135	3.30	3.465	V
Fais fab mov tam sim no	Icc			400	mA
Cov ntaub ntawv tus nqi			25.78		Gbps

Optical thiab hluav taws xob yam ntxwv

Parameter		Cim		Min	Hom	Max	Chav tsev	Sau ntawv
Transmitter
Center Wavelength			λc	1270	1310	1350	nm
Spectral dav (-20dB)			Δλ			1	nm
Sab-Mode Kev Tiv Thaiv Kev Sib Tw			SMSR	30	-		dB
Nruab Nrab Output Fais Fab			P_tawm	-6		2	dBm ib	1
Extinction Ratio			ER	3.5			dB
Data Input Swing Differential			V_IN	180		850	mV	2
Input Differential Impedance			Z_IN	90	100	110	Ω
TX Disable	Disable			2.0		Vcc	V
TX Disable	Pab			0		0.8	V
TX Fault	txhaum			2.0		Vcc	V
TX Fault	Ib txwm			0		0.8	V
Tus txais
Center Wavelength			λc	1260		1600	nm
Tus neeg txais kev xav						-13.3	dBm ib	3,4
Txais Kev Tshaj Tawm						2	dBm ib	3,4
LOS De-Assert			LOS_D			-15	dBm ib
LOS Assert			LOS_A	-30			dBm ib
LOS Hysteresis				0.5			dB
Data Output Swing Differential			V_tawm	300		900	mV	5
LOS			Siab	2.0		Vcc	V
LOS			Tsawg			0.8	V

Nco tseg:
1. Lub hwj chim kho qhov muag tau tso rau hauv SMF.
2. PECL cov tswv yim, sab hauv AC-coupled thiab txiav.
3. Ntsuas nrog PRBS 231-1 kuaj qauv @25.78Gps, BER Tsawg dua lossis sib npaug rau 5 ×10-5.
4. Ntsuas nrog PRBS 231-1 kuaj qauv @10.3125Gps, BER Tsawg dua lossis sib npaug rau 1 ×10-12.
Cov khoom 110.3 thiab cov khoom 118.3 tswj cov kev ntsuas xauv ntawm cov khoom siv sab hauv lossis CDR, tus nqi qub yog "1".

5. Internally AC-coupled.

Ntsis 110.3 ntawm A2h	Ntsis 118.3 ntawm A2h	RX Cov ntaub ntawv tus nqi	TX Data Rate	Status of RX CDR	Status of TX CDR
Siab / 1	Siab / 1	24.33G/25.78G	24.33G/25.78G	CDR xaiv	CDR xaiv
Siab / 1	Tsawg /0	24.33G/25.78G	9.95G/10.31G	CDR xaiv	CDR bypass
Tsawg /0	Siab / 1	9.95G/10.31G	24.33G/25.78G	CDR bypass	CDR xaiv
Tsawg /0	Tsawg /0	9.95G/10.31G	9.95G/10.31G	CDR bypass	CDR bypass

Ordering Information

Tshooj Naj Npawb	Kev piav qhia
SFP28-25G-LR	25Gbps SFP28 Transceiver, Ib hom, 10km ncav cuag

FAQ

1. Koj puas tuaj yeem muab SFP + rau hauv SFP28 chaw nres nkoj?

A: Yog lawm, tab sis thaum txuas nrog SFP + transceiver, qhov chaw nres nkoj no tsuas tuaj yeem txhawb nqa txog 10Gbps ntawm Internet ceev.

2. QSFP28 thiab SFP28 yog dab tsi?

A: Ob leeg muaj qhov sib txawv thiab cov qauv txheej txheem. Lub SFP28 module tau txhais tias txhawb nqa ib lub tsheb sib kis tus nqi ntawm 25GB, thiab QSFP28 txhawb nqa plaub 25Gbit / s channel nrog tag nrho cov ntaub ntawv tus nqi ntawm 100G

3. Dab tsi ceev yog SFP28 txhawb nqa?

A: SFP 28 optical module muaj qhov sib kis ntawm 25Gbps, siv LC connector.
