Nta

● Kev khiav hauj lwm cov ntaub ntawv tus nqi mus txog 25.78Gbps
● Txog li 10km kis tau tus mob
● High rhiab heev Pin photodiode thiab TIA
● LC duplex connector
● Kub pluggable 20pin connector
● Kev siv hluav taws xob tsawg<1 W
● -20 mus txog 70 degree kev khiav hauj lwm kub ntau yam
● Ib qho +3.3V ± 5% fais fab mov
● Ua raws li SFF-8472
● Ua raws li RoHS

Khoom Paub meej

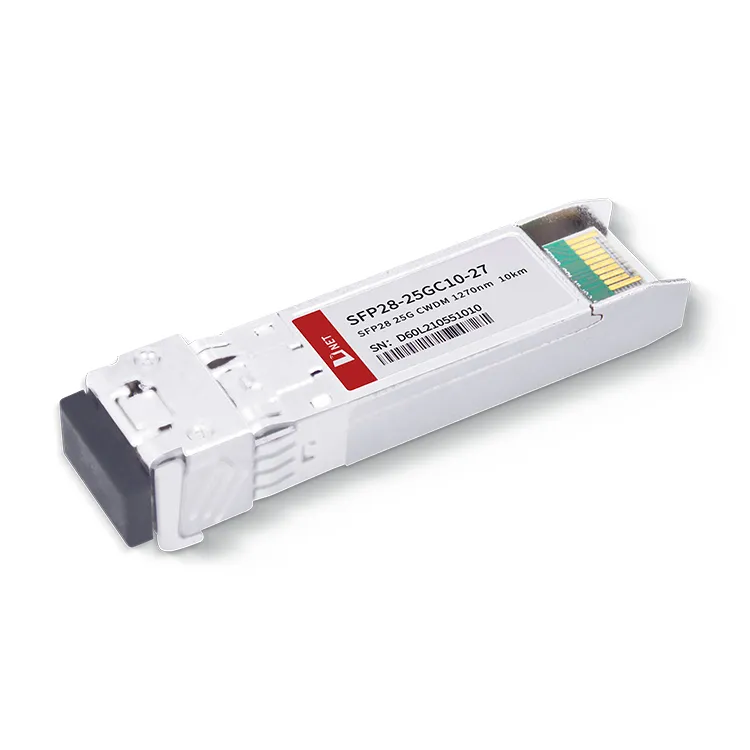

D-net's 25G CWDM 1270nm 10KM Module siv CWDM DML laser thiab PIN txais. Ob qho tib si nws tau txais thiab kis tau tus mob channel suav nrog lub CDR built-in Circuit Court muaj peev xwm txhawb nqa tus nqi siab tshaj plaws txog 25.78Gbps. 25G 1270nm 10KM xim optical transceiver yog tsim los txuag cov peev txheej fiber ntau, yog li txo cov nqi ua haujlwm tag nrho rau cov neeg muab kev pabcuam. 25G 1270nm 10KM Module ua raws li SFF-8472 thiab RoHS cov qauv. Lub 25G SFP28 CWDM 10KM transceiver module pom dav daim ntawv thov nyob rau hauv cov ntaub ntawv chaw interconnectivity, kev sib txuas lus tus neeg teb xov tooj optical kis tau tus mob network, wireless base chaw nres tsheb backhaul networks, thiab enterprise Ethernet scenarios.

Cim npe nrov: SFP28 CWDM 1270nm transceiver module, Tuam Tshoj SFP28 CWDM 1270nm transceiver module manufacturers, lwm tus neeg, Hoobkas

Qhov siab tshaj qhov ntsuas

Parameter	Cim	Chav tsev	Min	Max
Cia qhov kub thiab txias	Ts	^oC	-40	85
txheeb ze humidity	RH	%	0	95
Maximum Supply Voltage	vcc 3	V	-0.5	4.0

Pom zoo ua hauj lwm tej yam kev mob

Parameter	Cim	Chav tsev	Min	Ntaus	Max
Kev khiav hauj lwm Case Temperature Range	Tc	^oC	-20		70
Fais fab mov Voltage	Vcc	V	3.14	3.3	3.46
Tus nqi qis	BR	Gb/s		25.78
Me ntsis yuam kev Ratio	BER				5*10^-5
Max Supported Link Length	L	Km			10

Electric Ports Txhais

Parameter	Cim	Chav tsev	Min	Ntaus	Max	Nco tseg
Cov khoom siv hluav taws xob	V_CC	V	3.14	3.3	3.46
Kev siv fais fab	P	mW			1000
Transmitter
Input Differential Impedance	R_IN	Ω		100
Tib-kawg Data Input Swing	V_IN	mV-p	90		450
Transmit Disable Voltage	V_DIS	V	2		V_CCHOST
Transmit Enable Voltage	V_EN	V	V_EE		V_EE+0.8
Transmit Fault Assert Voltage	V_FA	V	2		V_CCHOST
Transmit Fault De-Assert Voltage	V_FDA	V	V_EE		V_EE+0.4
Tus txais
Tib-kawg Data Output Swing	V_OD	mV-p	200		450
LOS Fault	V_LOSFT	V	2		V_CCHOST
LOS Normal	V_LOSNR	V	V_EE		V_EE+0.4

Optical yam ntxwv

(Tc=0 txog 70 oC thiab Vcc= 3.14 txog 3.46V)

Parameter	Cim	Chav tsev	Min	Ntaus	Max	Nco tseg
Nominal Wavelength	λ	nm	1271,1291,1311,1331,1351, 1371,1391,1411,1431,1451
Wavelength Drift	Δλ	nm	-6.5		+6.5
Nruab Nrab Output Fais Fab	Pav	dBm ib	-3		2
Spectral dav (-20dB)	s	nm			1
Extinction Ratio	ER	dB	3.5
Sab Hom Txhaum Cai	SMSR	dB	30
Nruab nrab Launch Fais Fab ntawm OFF Transmitter	POFF	dBm ib			-30
Kwv tij siv suab nrov	RIN	dB/Hz			-128
Center Wavelength	λC	nm	1260		1620
Tus neeg txais kev hnov mob (OMA)	RSENSE	dBm ib			-11.3	1
Txais Kev Tshaj Tawm (OMA)	Pmax	dBm ib	2.2
Optical Rov Los Poob		dB			-26
LOS Assert	LOSA	dBm ib	-30
LOS De-Assert LOS	LOSD	dBm ib			-17
LOS Hysteresis		dB	0.5

Note1: Measured at 25.78125Gb/s,ER>3.5dBm, PRBS 231-1 thiab BER zoo dua lossis sib npaug rau 5E-5;

Ordering Information

Tshooj Naj Npawb	Kev piav qhia
SFP28-25GC10-27	25G CWDM 1270nm 10KM LC Optical Transceiver

FAQ

1. Qhov chaw nres nkoj 25G SFP28 yog dab tsi?

A: D-NET's SFP28 chaw nres nkoj yog rau 25G ceev chaw nres nkoj zoo ib yam li 10G SFP + chaw nres nkoj.

2. Puas yog SFP28 yog Ethernet?

A: Ethernet SFP28 yog rau cov neeg siv khoom siv 25GbE, SFP28 module, raws li daim ntawv pob ntawm SFP +, txhawb nqa 25G Ethernet tus qauv. Rov qab sib raug zoo nrog 10GbE muab txoj hauv kev tsiv teb tsaws chaw rau cov neeg siv khoom xav tau ntau dua bandwidth.
