Nta
● Kub-Pluggable
● 147nm CWDM EML transmitter, APD photo-detector
● Kev sib kis deb mus txog 80 km los ntawm kev sib txuas SMF
● 2-wire interface rau kev tswj xyuas tshwj xeeb raws li SFF 8472 digital diagnostic monitoring interface
● RoHS raws
Daim ntawv thov
● 10GBASE-ZR/ZW Ethernet
● Sonet OC-192/SDH
● 10G Fiber channel
● CWDM Networks
Khoom Paub meej

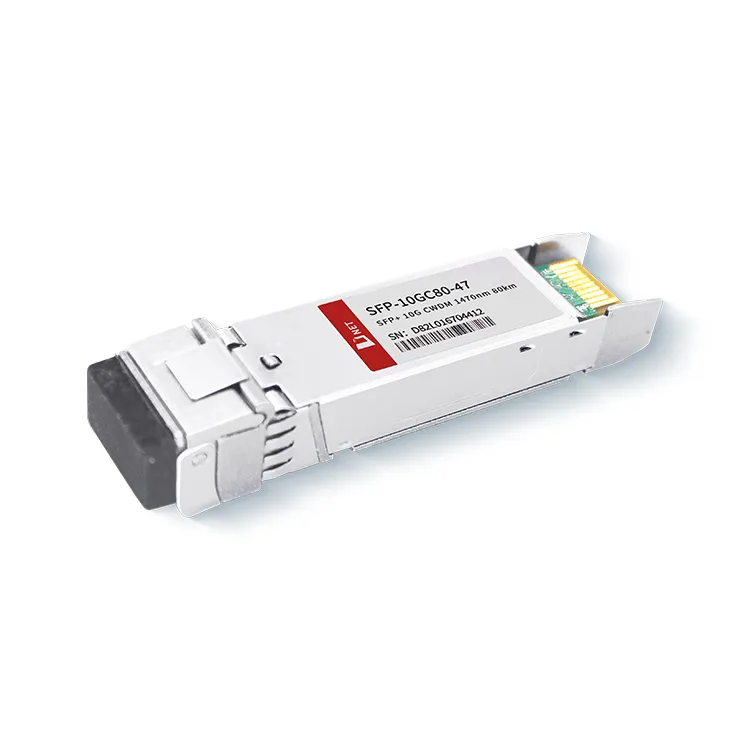

Qhov no optical transceiver ua haujlwm ntawm lub wavelength ntawm 1470nm tshwj xeeb hauv CWDM spectrum, ua kom yooj yim multiplexing thiab demultiplexing ntawm cov teeb liab hauv CWDM systems. Boasting qhov siab tshaj plaws kis tau tus mob ntawm 80 kilometers, nws yog qhov zoo-tsim rau kev sib txuas lus ntev-ntev uas txuas mus txog yog qhov tsim nyog.
Cim npe nrov: SFP+10G CWDM 1470km 80km, Tuam Tshoj SFP+10G CWDM 1470km 80km manufacturers, lwm tus neeg, Hoobkas
Qhov siab tshaj qhov ntsuas
|
Parameter |
Cim |
Min. |
Hom |
Max. |
Chav tsev |
|
Cia Kub |
TS |
-40 |
+85 |
degree |
|
|
Case Kev Ua Haujlwm Kub |
TA |
0 |
70 |
degree |
|
|
Maximum Supply Voltage |
Vcc |
-0.5 |
4 |
V |
|
|
txheeb ze humidity |
RH |
0 |
85 |
% |
Cov yam ntxwv hluav taws xob
(TOP=0 rau 70degree , VCC=3.135 txog 3.465V)
|
Parameter |
Cim |
Min. |
Hom |
Max. |
Chav tsev |
Nco tseg |
|
Cov khoom siv hluav taws xob |
Vcc |
3.135 |
3.465 |
V |
|
Cov khoom siv tam sim no |
Icc |
600 |
mA |
|||
|
Kev siv fais fab |
P |
2 |
W |
|||
|
Tshooj xov tooj cua |
||||||
|
Input qhov sib txawv impedance |
Rin |
100 |
Ω |
1 |
||
|
Tx Input Single Ended DC Voltage Tolerance (Ref VeeT) |
V |
-0.3 |
4 |
V |
||
|
Differential input voltage viav vias |
Vin, p |
180 |
700 |
mV |
2 |
|
|
Transmit Disable Voltage |
VD |
2 |
Vcc |
V |
3 |
|
|
Transmit Enable Voltage |
VEN |
Vee |
Yees +0.8 |
V |
||
|
Tshooj txais |
||||||
|
Ib qho kawg tso zis Voltage kam rau ua |
V |
-0.3 |
4 |
V |
||
|
Rx tso zis qhov sib txawv Voltage |
Vo |
300 |
850 |
mV |
||
|
Rx tso zis nce thiab caij nplooj zeeg |
Tr/Tf |
30 |
ps |
4 |
||
|
LOS Fault |
VLOS fault |
2 |
VccHOST |
V |
5 |
|
|
LOS Normal |
VLOS norm |
Vee |
Yees +0.8 |
V |
5 |
|
Nco tseg
1.Nws yog txuas ncaj qha mus rau TX cov ntaub ntawv input pins, nrog AC coupling los ntawm tus pins rau hauv lub laser tsav IC.
2.Lub LOS yog configured raws li ib tug qhib collector tso zis. Nws yuav tsum tau rub nrog ib tug resistor xws li 4.7kΩ txog 10kΩ ntawm lub rooj tsavxwm. Thaum lub sijhawm ua haujlwm ib txwm ua, nws tso tawm lub logic 0; nyob rau hauv cov ntaub ntawv ntawm lub teeb liab poob, nws outputs ib tug logic
3.Qhov siab tshaj plaws rub-up voltage nws tuaj yeem zam tau yog 5.5V.
Optical Parameters
(TOP=0 txog 70 degree, VCC=3.135 txog 3.465 Volts)
|
Parameter |
Cim |
Min. |
Hom |
Max. |
Chav tsev |
Nco tseg |
|
Tshooj xov tooj cua |
||||||
|
Center Wavelength |
λc |
λ-6.5 |
λ+6.5 |
nm |
||
|
spectral dav |
Δλ |
1 |
nm |
|||
|
Nruab Nrab Optical Fais Fab |
Pavg |
0 |
+4 |
dBm ib |
1 |
|
|
Laser Off Lub Zog |
Poff |
-30 |
dBm ib |
|||
|
Extinction Ratio |
ER |
8.2 |
dB |
|||
|
Transmitter Dispersion txim |
TDP |
3.0 |
dB |
2 |
||
|
Kwv tij siv suab nrov |
Rin |
-128 |
dB/Hz |
3 |
||
|
Optical Return Poob Tolerance |
20 |
dB |
||||
|
Tshooj txais |
||||||
|
Center Wavelength |
λr |
1260 |
1620 |
nm |
||
|
Tus neeg txais txiaj ntsig (OMA) |
Sen |
-23 |
dBm ib |
4 |
||
|
Stressed Sensitivity (OMA) |
SenST |
-21 |
dBm ib |
4 |
||
|
Los Assert |
LOSA |
-34 |
- |
dBm ib |
||
|
Los Dessert |
LOSD |
-24 |
dBm ib |
|||
|
Los Hysteresis |
LOSH |
0.5 |
dB |
|||
|
Tshaj dhau |
Sat |
-7 |
dBm ib |
5 |
||
|
Txais Reflectance |
Rrx |
-12 |
dB |
Nco tseg
1. Cov nuj nqis nruab nrab ntawm lub hwj chim yog cov ntaub ntawv tsuas yog, raws li IEEE802.3ae.
2. 12dB kev xav.
3. Cov xwm txheej ntawm kev ntsuam xyuas cov neeg txais kev ntxhov siab ib qho IEEE802.3ae. Kev ntsuam xyuas CSRS yuav tsum muaj lub rooj tsav xwm tswj hwm SFF-8431 ua raws.
4. Cov neeg txais kev tshaj tawm tau teev tseg hauv OMA thiab nyob rau hauv qhov kev ntxhov siab tshaj plaws.
Ordering Information
|
Tshooj Naj Npawb |
Kev piav qhia |
|
SFP-10GC80-C60 |
10Gb/s 80km CWDM SFP + Transceiver Kub Pluggable, Duplex LC, +3.3V, 1470nm, CWDM EML&APD, Ib hom |
FAQ
1. Dab tsi yog 10G SFP + chaw nres nkoj siv rau?
A: 10G SFP + feem ntau xa kho qhov muag ntawm 850nm, 1310nm, 1550nm, CWDM, DWDM; SONET / SDH rau 10Gbps, Fiber Channel, gigabit Ethernet, 10 gigabit Ethernet thiab lwm yam kev siv, kuj suav nrog DWDM txuas.
2. Kuv puas tuaj yeem siv SFP + transceivers hauv SFP28 chaw nres nkoj?
A: SFP + (10 Gigabit Ethernet) transceivers tsis tuaj yeem siv ncaj qha rau hauv SFP28 (25 Gigabit Ethernet) cov chaw nres nkoj. Txawm hais tias ob qho tib si SFP + thiab SFP28 modules siv tib daim ntawv, lawv ua haujlwm ntawm qhov sib txawv. SFP + modules txhawb cov ntaub ntawv tus nqi txog 10Gbps, thaum SFP28 modules txhawb cov ntaub ntawv tus nqi txog 25Gbps. Tsis tas li ntawd, SFP28 cov chaw nres nkoj tau tsim los txhawb nqa lub zog siab dua uas xav tau rau kev ua haujlwm 25Gbps. Yog li, siv SFP + transceiver hauv SFP28 chaw nres nkoj yuav tsis sib xws thiab yuav tsis ua haujlwm.
