Khoom Taw Qhia
● Max. Kev siv fais fab 0.5W
● SFP-DD Module ua raws li SFP-DD MSA
● Built-in EEPROM ua haujlwm
● Cov ntaub ntawv ua haujlwm kub 0 degree txog 70 degree
● RoHS2 0 ua raws
Product Detail

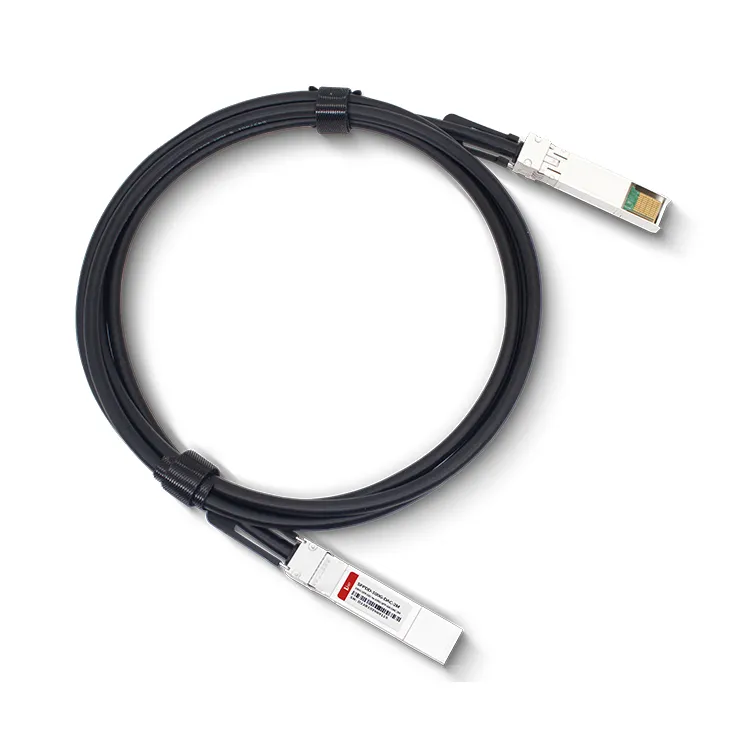

D-Net's 100G SFPDD rau SFPDD Passive Direct Txuas Copper Cable, ntev ntawm 0.5M txog 30M. Txais kev cai ntev thiab compatibility.
Cim npe nrov: SFPDD-100G-DAC-(1-10) meter cable, Tuam Tshoj SFPDD-100G-DAC-(1-10) meter cable manufacturers, lwm tus neeg, Hoobkas
Qhov siab tshaj qhov ntsuas
|
Parameter |
Cim |
Min |
Hom |
Max |
Chav tsev |
|
Cov khoom siv hluav taws xob |
Vcc |
3. 13 |
3.3 |
3.47 |
V |
|
Cia kub |
Ts |
-40 |
85 |
ºC |
|
|
Kev khiav hauj lwm Case kub |
Tc |
0 |
70 |
ºC |
|
|
Cov av noo |
Rh |
5 |
85 |
% |
|
|
Cov ntaub ntawv tus nqi |
100 |
Gbps |
Cov yam ntxwv ntawm lub cev
|
Parameter |
Cim |
Min |
Hom |
Max |
Chav tsev |
|
Ntev |
L |
0.5 |
3 |
M |
|
|
AWG |
30 |
26 |
AWG |
||
|
Jacket khoom |
PVC, Dub |
||||
|
Kev ntsuas nplaim taws |
VW - 1 |
||||
Hluav taws xob Specifications
|
Parameter |
Cim |
Min |
Hom |
Max |
Chav tsev |
|
Kev tiv thaiv |
Rcon |
3 |
ohm ua |
||
|
Rwb thaiv tsev Resistance |
Rins |
10 |
ºC |
||
|
Raw cable impedance |
Zca |
95 |
110 |
Mohm |
|
|
Mated connector impedance |
Zmated |
85 |
110 |
ohm ua |
|
|
Qhov siab tshaj qhov poob ntawm 13.28 GHz |
SDD 21 |
17. 16 |
dB |
||
|
Lwm yam SI Performance |
Ua raws li IEEE 802.3cd&bj |
||||
|
Yam tsawg kawg COM |
COM |
3 |
dB |
||
Pin Description
Mechanical Dimensions
Ordering Information
|
Tshooj No. |
Kev piav qhia |
|
SFPDD-100G-005 |
100G SFP-DD to SFP-DD DAC, 30AWG, 0.5m, PVC, BLACK. |
|
SFPDD-100G-010 |
100G SFP-DD to SFP-DD DAC, 30AWG, 1.0m, PVC, BLACK. |
|
SFPDD-100G-015 |
100G SFP-DD rau SFP-DD DAC, 30AWG, 1.5m, PVC, BLACK. |
|
SFPDD-100G-020 |
100G SFP-DD to SFP-DD DAC, 30AWG, 2.0m, PVC, BLACK. |
|
SFPDD-100G-025 |
1 00G SFP-DD to SFP-DD DAC, 26AWG, 2.5m, PVC, BLACK. |
|
SFPDD-100G-030 |
100G SFP-DD to SFP-DD DAC, 26AWG, 3.0m, PVC, BLACK. |
FAQ
1. SFP-DD yog dab tsi?
A: SFP-DD stands rau Daim Ntawv me me-qhov tseem ceeb Pluggable Ob Qhov Ceev. Nws yog ib qho kev qhia tshwj xeeb uas tsim los ntawm SFP-DD Multi-Source Agreement (MSA) pab pawg uas txhais tau hais tias cov khoom siv kho qhov muag pom tau zoo. SFP-DD modules tau tsim los ua kom rov qab sib haum nrog SFP transceivers uas twb muaj lawm thaum ua ob npaug ntawm qhov chaw nres nkoj ceev thiab cov ntaub ntawv tus nqi.
2. Tus nqi rau SFP-DD yog dab tsi?
A: SFP-DD modules muab kev txhawb nqa rau cov ntaub ntawv ntau dua piv rau cov qauv SFP ib txwm muaj. Thaum cov thawj SFP modules feem ntau txhawb cov ntaub ntawv tus nqi mus txog 10 Gbps (Gigabits ib ob) lossis 25 Gbps, SFP-DD modules tau tsim los txhawb cov ntaub ntawv tus nqi ntawm 50 Gbps, 100 Gbps, thiab ntau dua. SFP-DD modules ua tiav cov ntaub ntawv siab dua no los ntawm kev siv ob kab ntawm kev sib cuag hluav taws xob tsis yog ib qho, tso cai rau kev sib koom ua ke ntawm ntau txoj kab ntawm cov ntaub ntawv xa mus.
3. Dab tsi yog qhov ceev ntawm SFP-DD?
A: Qhov ceev ntawm SFP-DD tuaj yeem sib txawv nyob ntawm qhov kev siv tshwj xeeb thiab cov qauv. Txawm li cas los xij, SFP-DD txhawb nqa cov ntaub ntawv tus nqi ntawm 25 Gbps (Gigabits ib ob) ib channel thiab 50 Gbps rau ib qhov chaw nres nkoj. Nws kuj tseem muaj peev xwm txhawb nqa cov ntaub ntawv yav tom ntej ntawm 56 Gbps thiab 112 Gbps, muab kev yooj yim thiab scalability rau high-bandwidth applications.
