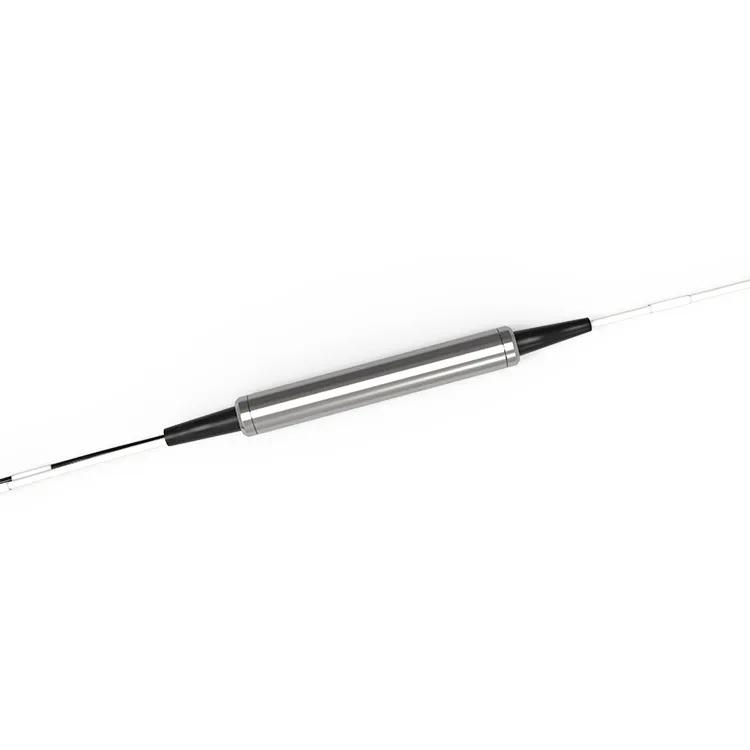

3 Chaw nres nkoj 50GHz DWDM Lim Passive Component

3 chaw nres nkoj 50Ghz DWDM lim tivthaiv tso cai rau multiplexing thiab demultiplexing ntawm ntau lub teeb liab kho qhov muag ntawm ib qho fiber ntau, siv ITU wavelength daim phiaj. Cov khoom ntiag tug muaj nyob rau ntawm ITU channel qhov sib nrug ntawm 50 GHz.Qhov kev siv tshuab no muab cov kev daws teeb meem zoo tshaj plaws rau cov tuam txhab kev sib txuas lus, cov chaw khaws ntaub ntawv, thiab cov lag luam thoob plaws ntiaj teb.

Xa kev nug

Hauj lwm lawm

Kev tsis

Product details

Lub 50Ghz DWDM lim zaus ntawm 50GHz tuaj yeem tshuaj ntsuam thiab hloov kho qhov muag teeb liab nyob rau hauv 50GHz bandwidth.3 chaw nres nkoj 50Ghz DWDM lim tivthaiv tuaj yeem siv los ua kev ntxig, tshem tawm thiab saib xyuas taw tes hauv Fiber-optic kev sib txuas lus. DWDM thev naus laus zis tuaj yeem xa tawm ntau lub teeb liab kho qhov muag nrog ntau lub wavelengths ib txhij, uas ua rau kom muaj peev xwm sib txuas lus ntawm Fiber-optic kev sib txuas lus systems.50Ghz DWDM cov ntxaij lim dej yog dav siv hauv Access networks, Metro WDM systems, Long Haul WDM systems thiab Enterprise networks.

Cim npe nrov: 3 Chaw nres nkoj 50GHz DWDM Lim Passive Component, Tuam Tshoj 3 Chaw nres nkoj 50GHz DWDM Lim Passive Component manufacturers, lwm tus neeg, Hoobkas

Khoom Specifications

Wavelength ntau	C- lossis L-band ITU channels 186.6 rau 196.1 THz	Technology	TFF (Thin Film Filter)
Hla Band Dav @ -0.5dB	Ntau dua lossis sib npaug rau 0.22nm	Kev sib kis passband ripple	Tsawg dua lossis sib npaug rau 0.40dB
Kev sib kis ntxig poob	Tsawg dua lossis sib npaug rau 0.8dB	Reflection passband ripple	Tsawg dua lossis sib npaug rau 0.20dB
Reflection insertion poob	Tsawg dua lossis sib npaug rau 0.40dB	Kev sib kis kev cais tawm (adj channel)	Ntau dua lossis sib npaug li 20dB
Kev sib kis muab cais nyob ib leeg (tsis yog adj channel)	Ntau dua lossis sib npaug li 45dB	Reflection cais	Ntau dua lossis sib npaug li 12dB
Polarization nyob ntawm poob	Tsawg dua lossis sib npaug rau 0.2dB	Polarization hom kev tawg	Tsawg dua lossis sib npaug rau 0.2ps
Kev taw qhia	Ntau tshaj lossis sib npaug li 50dB	Rov qab poob	Ntau dua lossis sib npaug li 45dB
Optical zog tuav	Ntau dua lossis sib npaug li 500	Kub	Kev khiav hauj lwm: -40 mus rau +85 degree Cia: -40 mus rau +85 degree
Fiber hom	SMF-28e	Pob dimension	∮ 5.5 x L34 mm

Nco tseg:
1) Tag nrho cov kev qhia tshwj xeeb yog ua raws li cov khoom siv tsis muaj cov khoom sib txuas, thiab tau lees paub dhau wavelength, polarization thiab kub.
2) PMD thiab chromatic dispersion qhov tseem ceeb yog lav los ntawm kev tsim.3) Cov lus qhia tshwj xeeb yuav hloov pauv yam tsis tau ceeb toom.

Ordering Information

RD-D	- Pob	-Connector Hom	U/A	-Channel Plan	- Hom fiber ntau	- Fiber Ntev	-50G
	S: Hlau	0: Tsis muaj connector	U: UPC	C19	25: 250um Fiber ntau	005: 0.5+/-0.1m	50G: 50GHZ
	G: iav	1 :lc	A: APC	C20	90: 900um Fiber ntau	01: 1.0+/-0.1m
		2 :sc ua		C21		lwm tus
		3:fc ua		lwm tus
		4:lwm

Piv txwv:RD-DS1U-C19-2505-50G: 3Port 50GHZ DWDM C19 1562.23nm LC/UPC 250um 0.5M Fiber Steel.

FAQ

Q: Dab tsi yog qhov 3-port 50GHz DWDM ITU tivthaiv?

A: A 3-chaw nres nkoj 50GHz DWDM ITU tivthaiv yog ib hom kev kho qhov muag uas tso cai rau multiplexing (combining) thiab demultiplexing (sib cais) ntawm ntau lub wavelengths ntawm lub teeb nyob rau hauv ib qho optical network. Nws yog tsim los ua haujlwm hauv ITU (International Telecommunication Union) daim phiaj, uas qhia txog cov txheej txheem wavelengths rau kev siv hauv kev sib txuas lus kho qhov muag.

Q: Dab tsi yog qhov kev poob qis ntawm 3-port 50GHz DWDM ITU tivthaiv?

A: Qhov kev sib kis tsis zoo ntawm ib qho {{0}} chaw nres nkoj 50GHz DWDM ITU tivthaiv feem ntau tsawg dua 0.8dB; Lub Reflection insertion poob tsawg dua 0.40dB.
