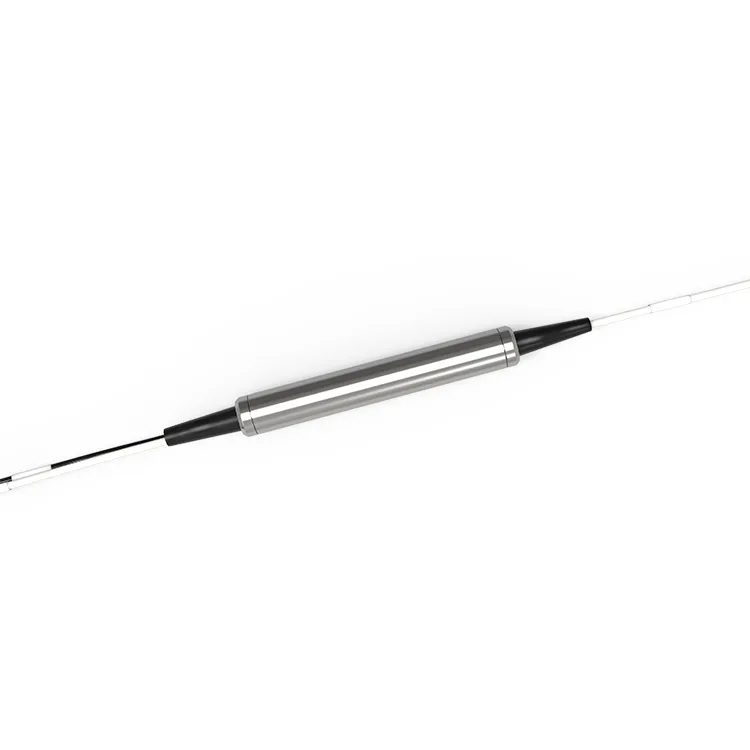

FWDM Filter TX1550 RX1310 1490 Passive Component

FWDM yog ib qho tseem ceeb hauv kev sib txuas lus kho qhov muag xws li Fiber-to-the-Home (FTTH) thiab Telecommunications networks. Nws tso cai rau cov ntaub ntawv sib kis tau ntev dua nrog cov teeb liab tsawg tsawg. TX teeb liab ntawm 1550nm feem ntau yog siv rau kev sib txuas lus ntev-ntev fiber ntau optic vim nws qis qis qis dua piv rau luv luv wavelengths. RX teeb liab ntawm 1310nm thiab 1490nm, ntawm qhov tod tes, feem ntau yog siv hauv passive optical networks (PONs) luv luv mus rau nruab nrab-haul kis.

Xa kev nug

Hauj lwm lawm

Kev tsis

Khoom piav qhia

FWDM Filter TX1550 RX1310 1490 Passive Component yog qhov muaj txiaj ntsig zoo thiab muaj kev ntseeg siab ntawm kev sib txuas lus kho qhov muag tsim los sib cais thiab sib txuas cov wavelengths nrog ntau qib zog. Los ntawm kev siv tshuab optical splitting, nws faib cov teeb liab mus rau qhov sib txawv wavelengths rau kev sib kis, yog li txhim kho kev sib txuas lus thiab ua kom cov ntaub ntawv ruaj khov dua. Qhov no ua rau muaj txiaj ntsig zoo rau tag nrho kev ua haujlwm ntawm kev sib txuas lus kho qhov muag. Nws pom kev siv dav hauv optical amplifiers thiab CATV daim ntawv thov.

Cim npe nrov: fwdm lim tx1550 rx1310 1490 passive tivthaiv, Tuam Tshoj fwdm lim tx1550 rx1310 1490 passive tivthaiv manufacturers, lwm tus neeg, Hoobkas

Khoom Specifications

Lub wavelength	TX 1550 RX 1310 / 1490nm	Technology	TFF (Thin Film Filter)
Passband	1540-1650 nm	Kev xav	1260~1360&1480~1500
Passband ripple	Tsawg dua los yog sib npaug rau 0.30dB	IB @ Passband	Tsawg dua los yog sib npaug rau 0.60dB
Reflection band ripple	Tsawg dua lossis sib npaug rau 0.20dB	IB @ Reflection	Tsawg dua lossis sib npaug rau 0.40dB
Kev sib cais sib kis (adj channel)	Ntau dua lossis sib npaug li 30dB	Kev sib cais sib kis (tsis yog-adj channel)	Ntau dua lossis sib npaug li 50dB
Reflection cais	Ntau dua lossis sib npaug li 15dB	Polarization dependent poob	Tsawg dua lossis sib npaug rau 0.1dB
Polarization hom dispersion	Tsawg dua los yog sib npaug rau 0.2ps	Thermal stability	Tsawg dua lossis sib npaug rau 0.005N
Kev taw qhia	Ntau dua lossis sib npaug li 50dB	Rov qab poob	Ntau dua lossis sib npaug li 45dB
Optical zog tuav	Tsawg dua lossis sib npaug li 500mW	Kub	Ua haujlwm -40 txog 85 degree Cia -40 rau 85 degree
Fiber hom	SMF-28e	Pob dimension	Hlau ∮5.5 x L34mm ABS 90 * 20 * 10nm

Nco tseg.
1) Tag nrho cov kev qhia tshwj xeeb yog ua raws li cov khoom siv tsis muaj cov khoom sib txuas, thiab tau lees paub dhau wavelength, polarization thiab kub.
2) PMD thiab chromatic dispersion qhov tseem ceeb yog lav los ntawm kev tsim.
3) Cov lus qhia tshwj xeeb tuaj yeem hloov pauv yam tsis tau ceeb toom.

Ordering cov ntaub ntawv

FW	- Pob	-Connector Hom	U/A	-55	- Hom fiber ntau	- Fiber Ntev
	S: Hlau	0: Tsis muaj connector	U: UPC	55: 1550 nm	9: 0.9 hli Fiber	005: 0.5+/-0.1m
	B: ABS BOX	1 :lc	A: APC		2: 2.0mm	01: 1.0+/-0.1m
	Lwm tus	2 :sc ua			3: 2.0 hli	lwm tus
		3:fc ua			Lwm tus
		4:lwm

FAQ

Q: FWDM TX 1550nm RX 1310 / 1490nm txhais li cas?

A: Cov khoom siv FWDM no tuaj yeem tau txais lub teeb liab ntawm 1310nm lossis 1490nm thiab ib txhij xa cov teeb liab ntawm 1550nm. Lub hom phiaj yog kom xa ntau lub teeb liab ntawm ib qho fiber ntau.

Q: Cov ntaub ntawv hloov pauv li cas FWDM TX 1550nm RX 1310 / 1490nm txhawb nqa?

A: Cov cuab yeej txhawb nqa cov ntaub ntawv sib txawv, suav nrog 1Gbps, 10Gbps, 40Gbps, thiab 100Gbps, thiab lwm yam.

Q: Lub luag haujlwm ntawm FWDM TX 1550nm RX 1310 / 1490nm yog dab tsi?

A: Cov cuab yeej tuaj yeem cais cov teeb liab ntawm 1310nm lossis 1490nm los ntawm lub teeb liab ntawm 1550nm txhawm rau txo qis kev cuam tshuam kev cuam tshuam thiab txhim kho cov teeb liab zoo thaum sib kis.
